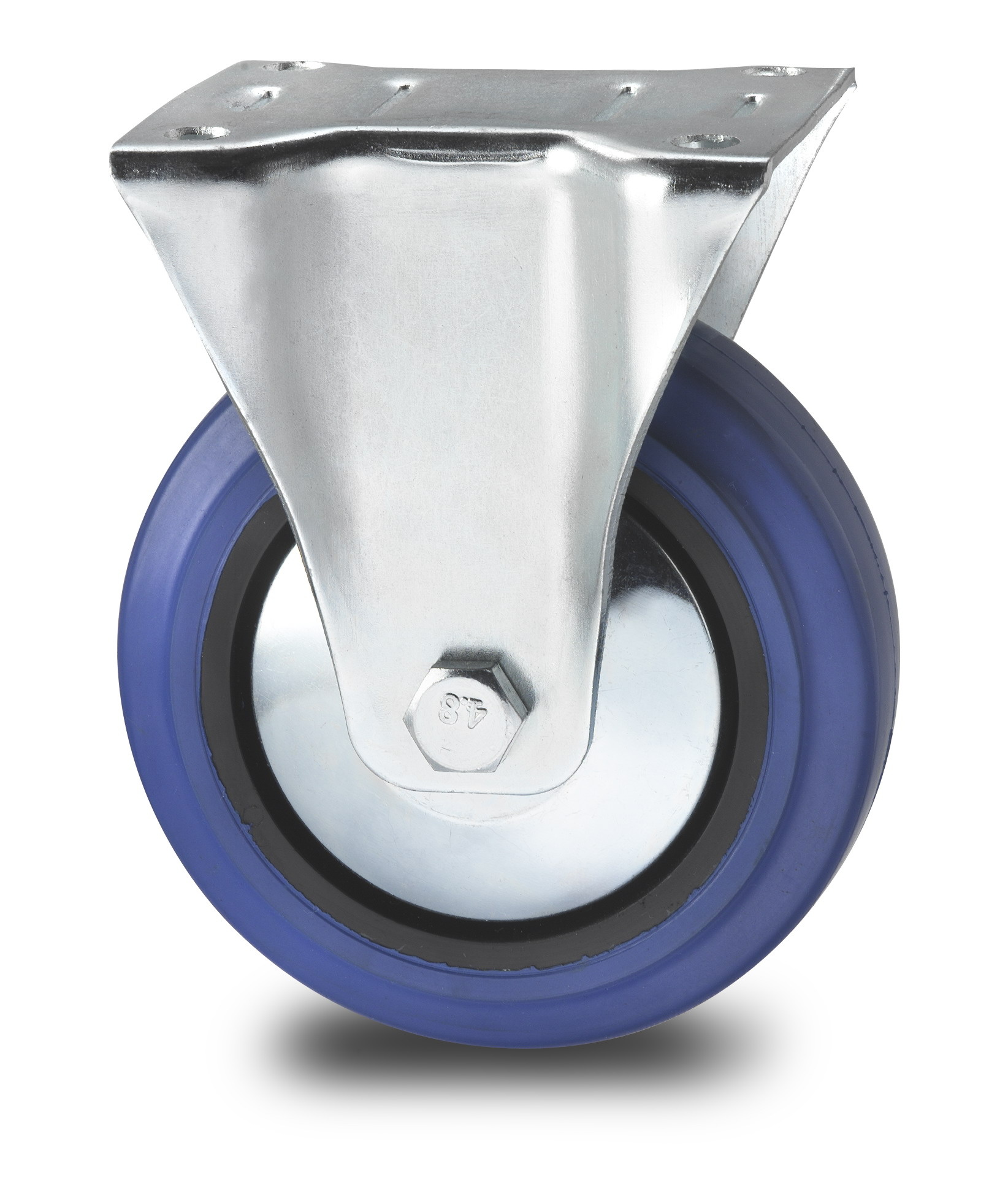

Industrial Fixed castor from pressed steel, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

Product description

Industrial Fixed castor from pressed steel, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

Industrial, elastic rubber Fixed castor

Housing: pressed steel, bright zinc plated, blue passivated, plate fitting
Wheel: elastic-tyre, with Wheel centre from Polyamide, roller bearing, threadguards

Features: Versatile in use with excellent rolling characteristics. Low noise and vibration dampening, non marking

Applications: Flight case, Roll cage caster, Trolleys for Industrial Handling, Flightcase, Theater & Entertainment, blue elastic rubber

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. Non marking
Suitable environment: Dry and not permanently wet. With weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Fixed castor from pressed steel, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

Industrial Fixed castor from pressed steel, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 246572106K
  • EAN 8718116121817

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 100
  • Wheel witdh (mm) 35
  • Load capacity (kg) 150
  • Overall height (mm) 128
  • Size of top plate (mm) 105x80
  • Topplate hole centres (mm) 80x60
  • Mounting hole diameter (mm) 9
  • Bearing type roller bearing
  • Hardness of tread 70° Shore A
  • Tread description Blue (flight case) wheels with elastic rubber tyre, these wheels have low rolling and swivel resistance, absorb shocks and leave no marks.
  • Temperature -20 / +60°C
  • Castor wheel type Fixed castor wheel
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Fixed fork made of pressed galvanised sheet steel
  • Series 46.57
  • Tread elastic-tyre
