4 x Swivel castors for container. Combined load capacity at 4 km/h: 9,500 kg. Includes brake system, directional lock and twist-lock for mounting on 1161 ISO corner castings.

Product description
Quality & Service since 1946

A set of 4 shipping container castors carries a total dynamic load of 9,000 kg and a total static load of 12,000 kg. With a directional lock!

Swivel Tow Castors with Twist-Lock Fitting for NEN-ISO 1161-Corners

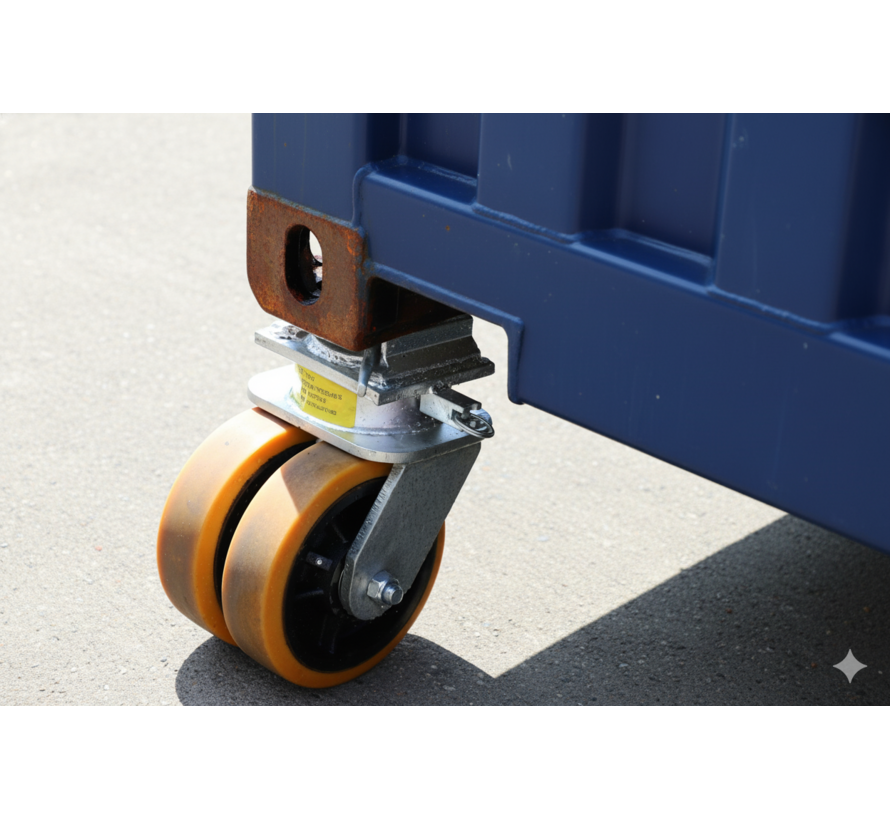

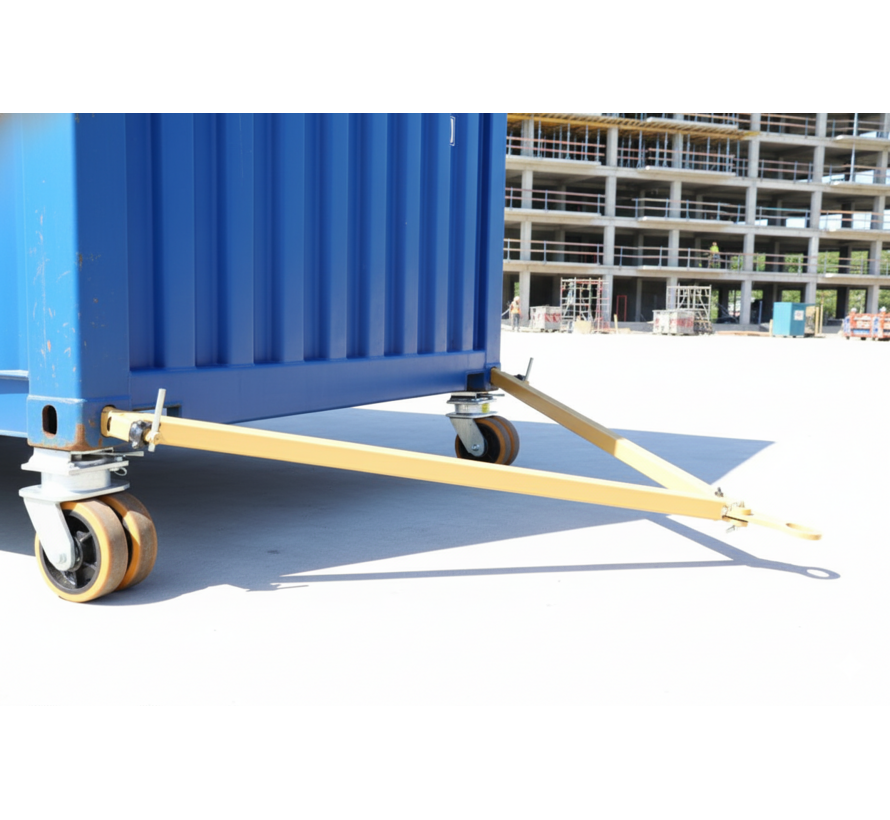

Upgrade your container mobility with these heavy-duty tow castors, designed to rigidly clamp to ISO 1161 corner fittings of standard freight containers, mobile generator containers, and military communication containers. They provide an efficient way of mobilizing containers with NEN-ISO 1161 corners at speeds up to a maximum of 6 km/h (3.8 mph).

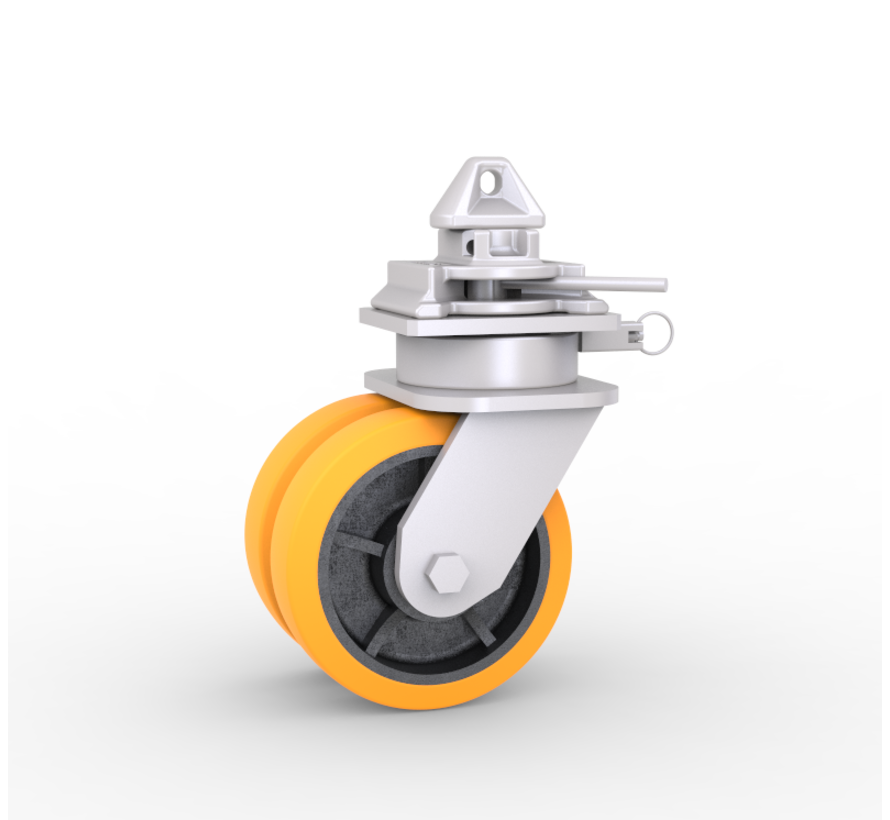

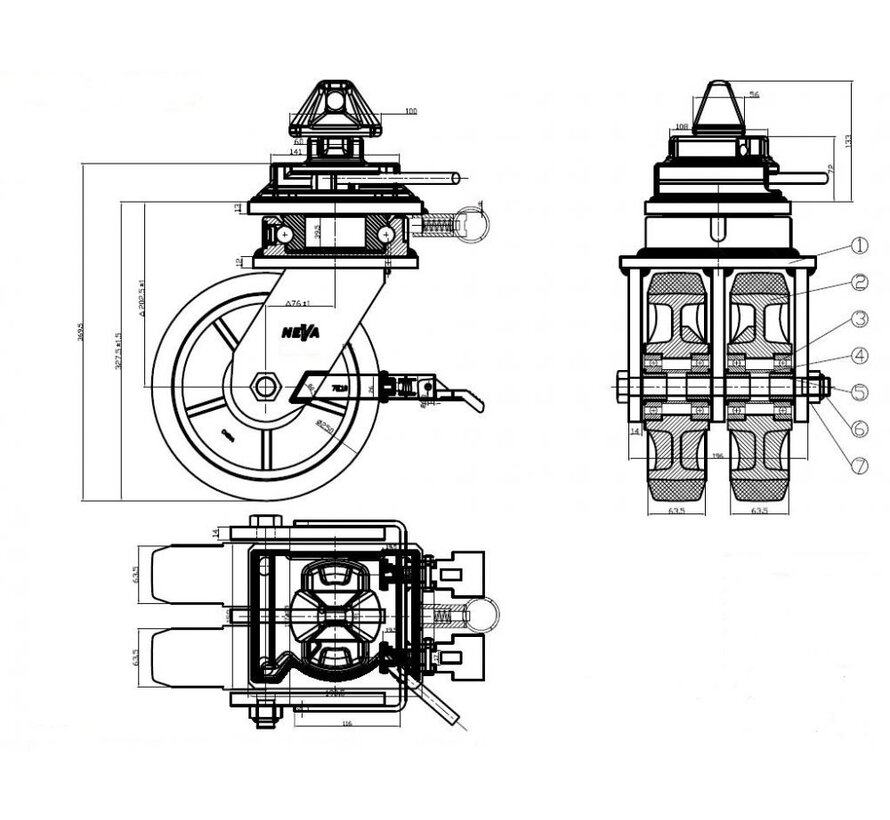

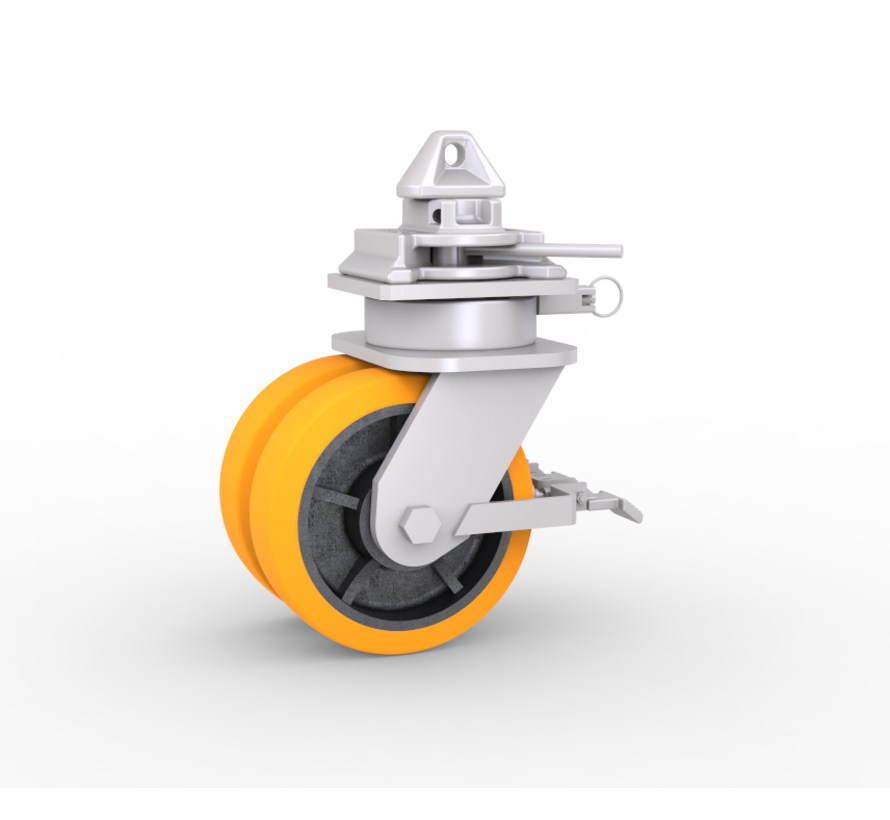

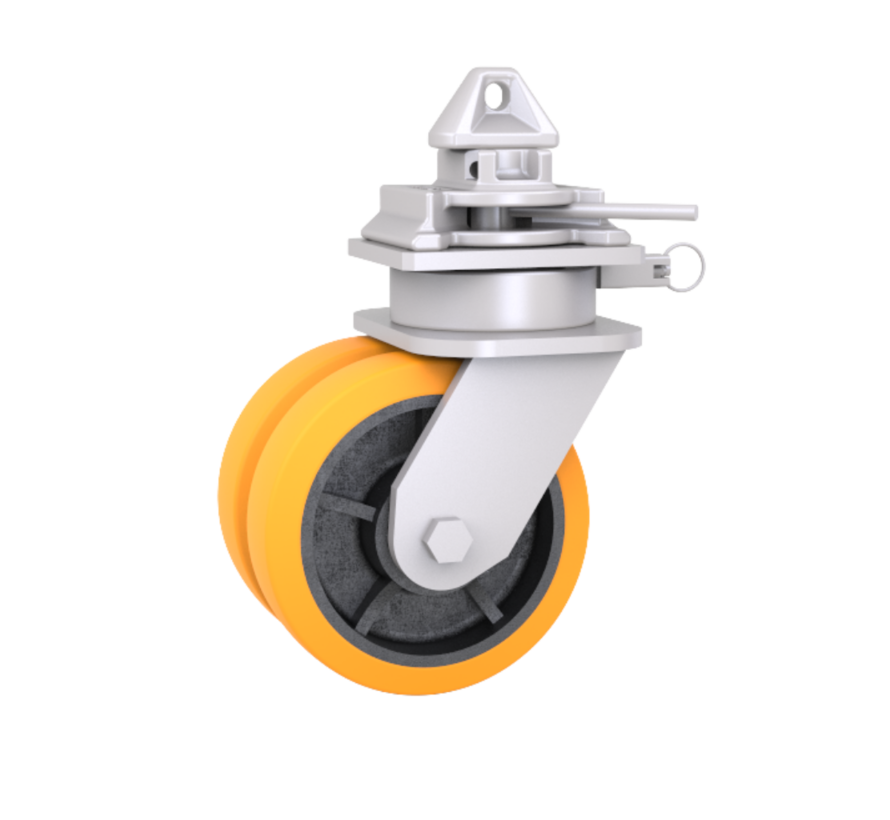

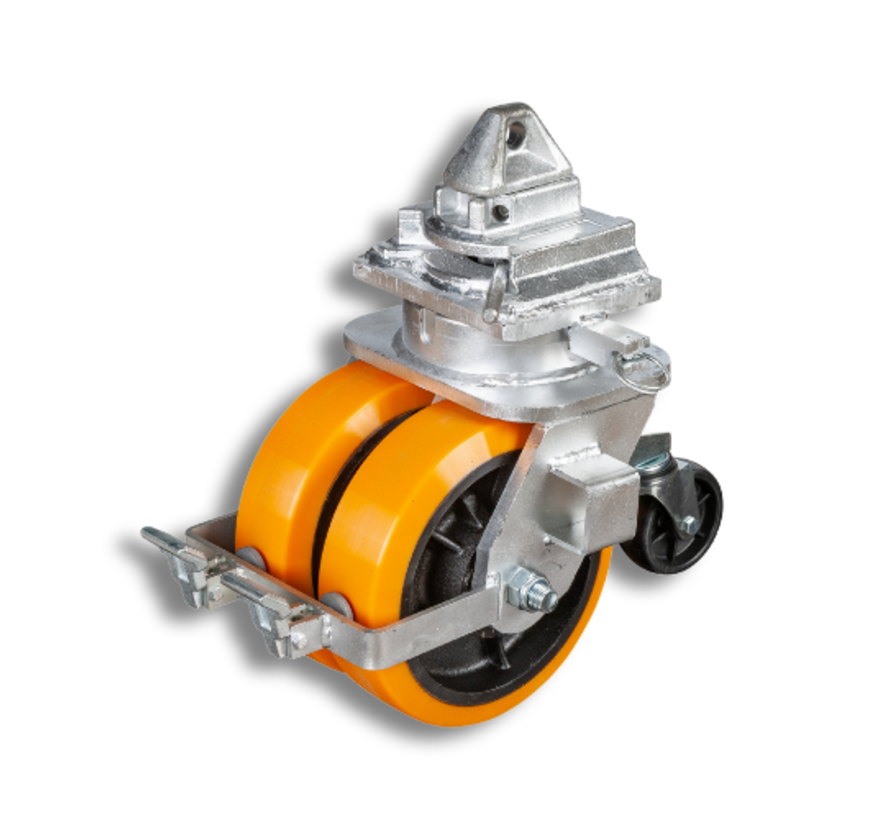

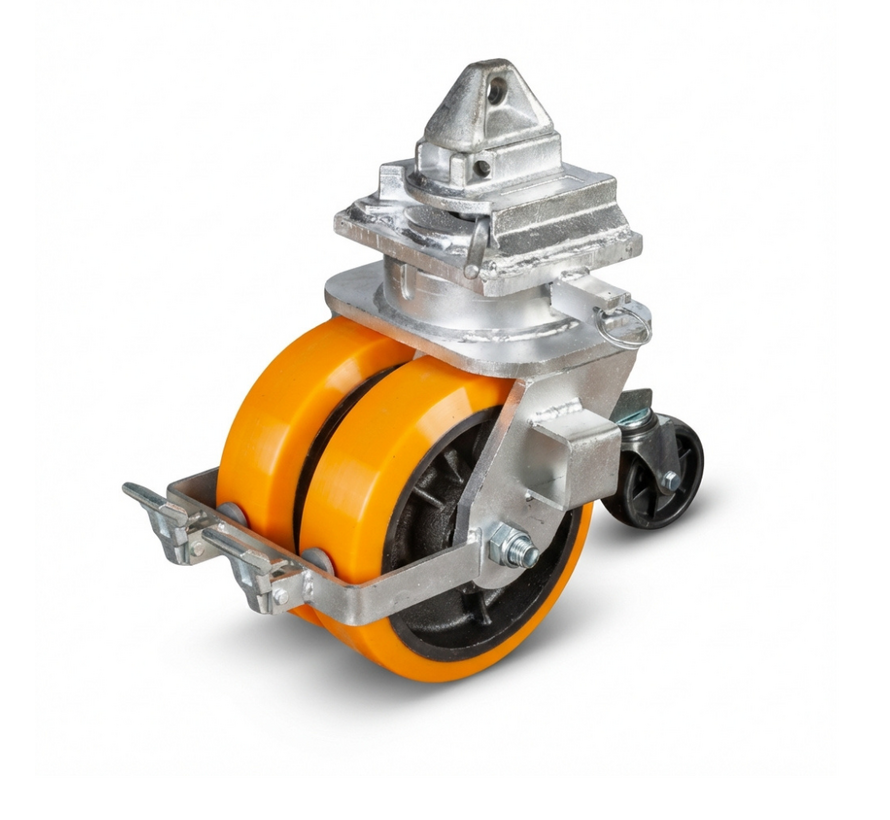

Each swivel castor support system has a twist-lock fitting assembled with 2 polyurethane wheels for maximum stability and safety. The wheels have a diameter of 250 mm and a width of 63 mm, featuring cast iron centers and polyurethane treads. This design ensures smooth rolling and the ability to carry heavyweight simultaneously.

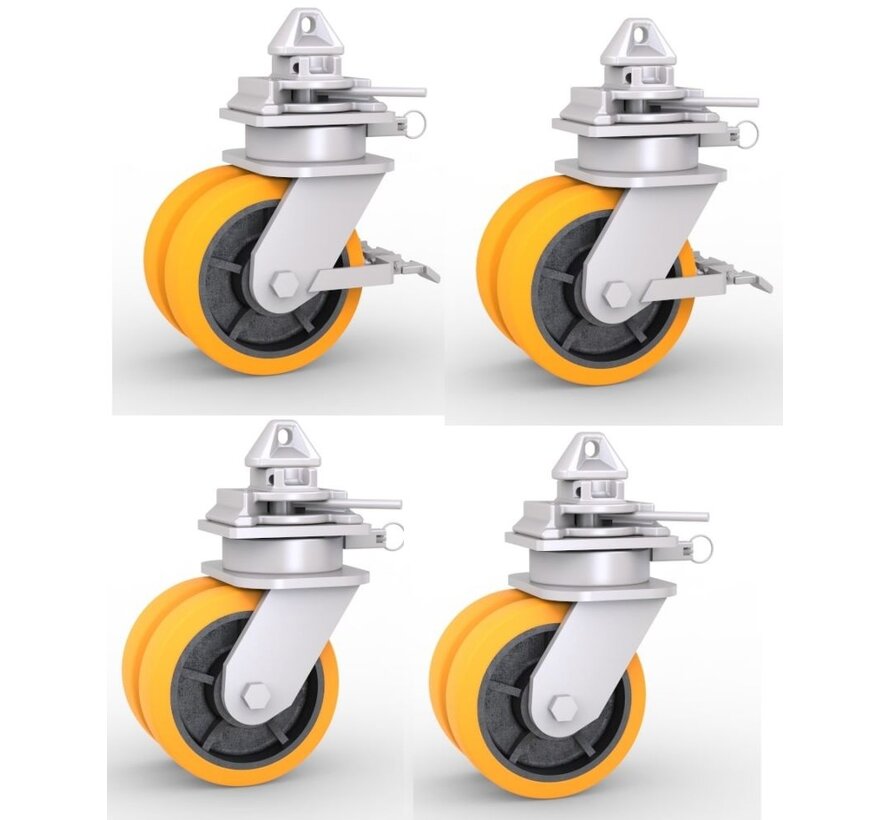

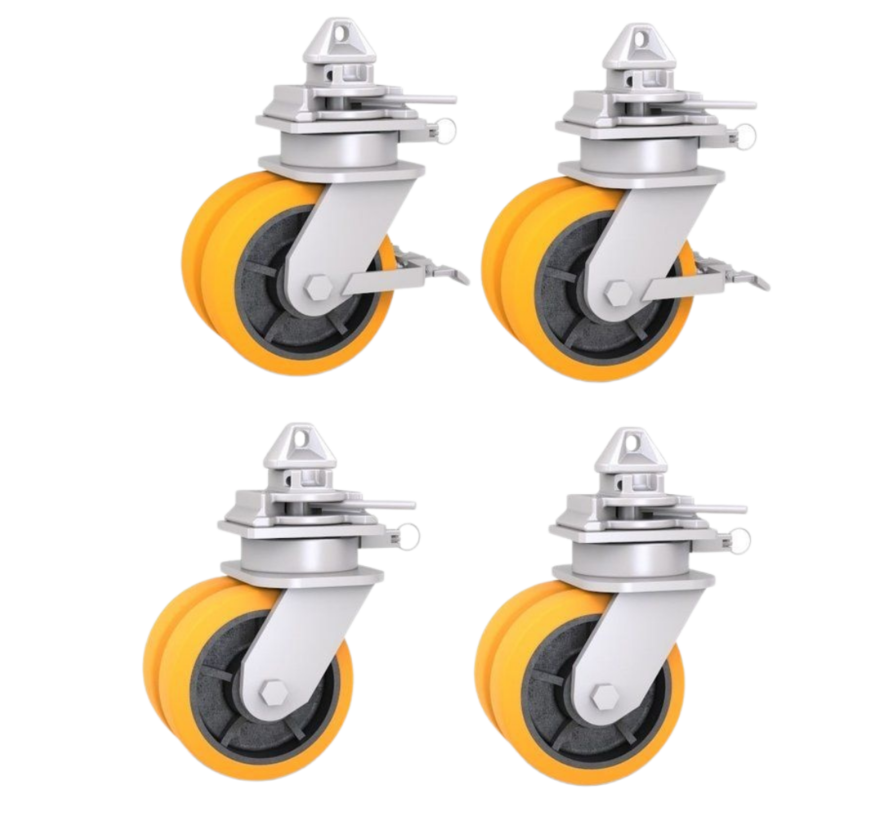

The complete set consists of four castors that lock from below into corner castings incorporated into all containers with DIN ISO 1161 corners.

Scope of Supply:

2 x 121826252L4
2 x 121826255L4

Applications: Moving containers in and out of facilities, alterations, upfits, or complexing and loading shelters. Our Container Casters are rugged products available in various capacities and wheel types for different surfaces. Please contact our specialists for more information.

Sea Freight Container Swivel Tow Castor System with ISO Twist Lock | A set of 4 castors offer a maximum load capacity of 12,000 kg.

Carrying Capacity System: Up to 12 t (static)
Carrying Capacity System: Up to 9 t (dynamic)
Dynamic Service Speed: Maximum 6 km/h
Locking: DIN ISO 1161 corners from below
Corrosion Protection: Steel parts galvanic zinc, high-grade steel parts
