A set of 4 tow castor wheels carries a maximum static load of 18,000 kg | Max load distributed over 4 wheels at 4km/H: 13,500 KG | Max load per wheel at 4km/H: 4,000 KG
Set of four swivel castor wheels with twist-lock fitting for NEN-ISO 1161-corner castings.

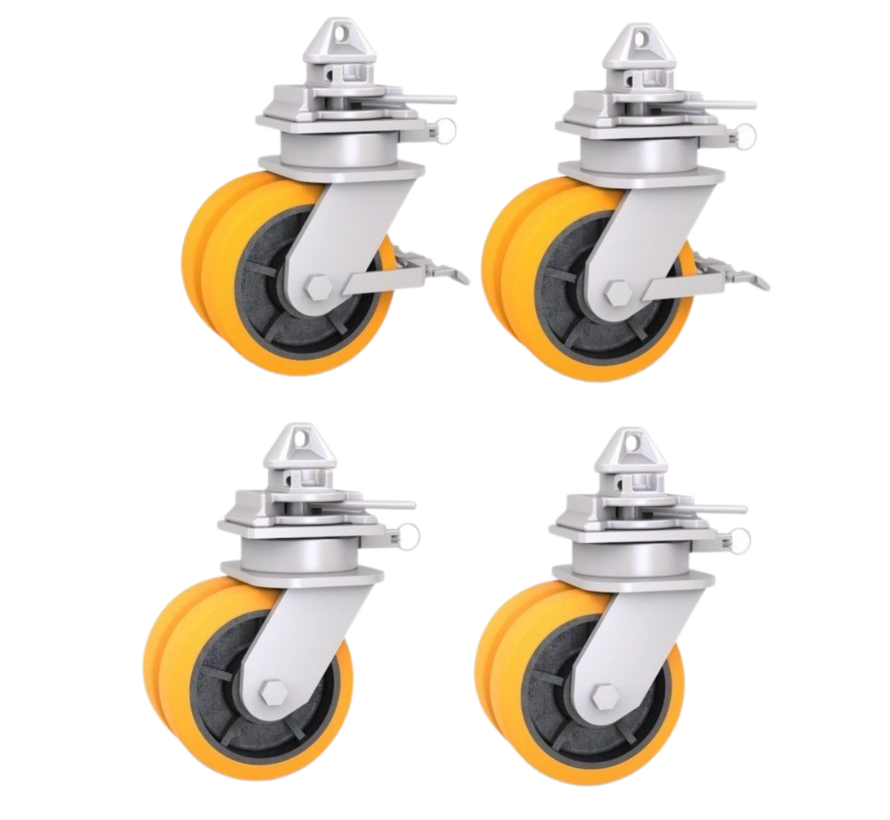

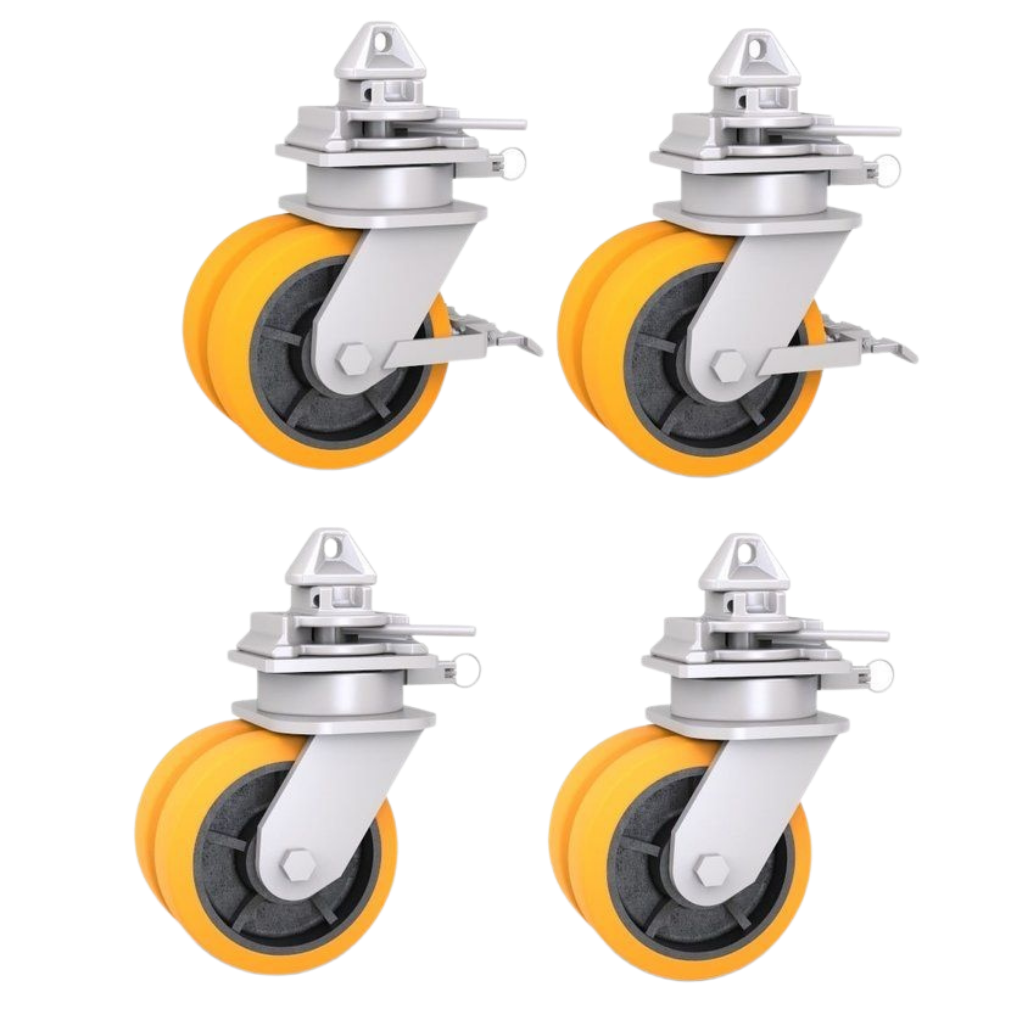

A set consists of:

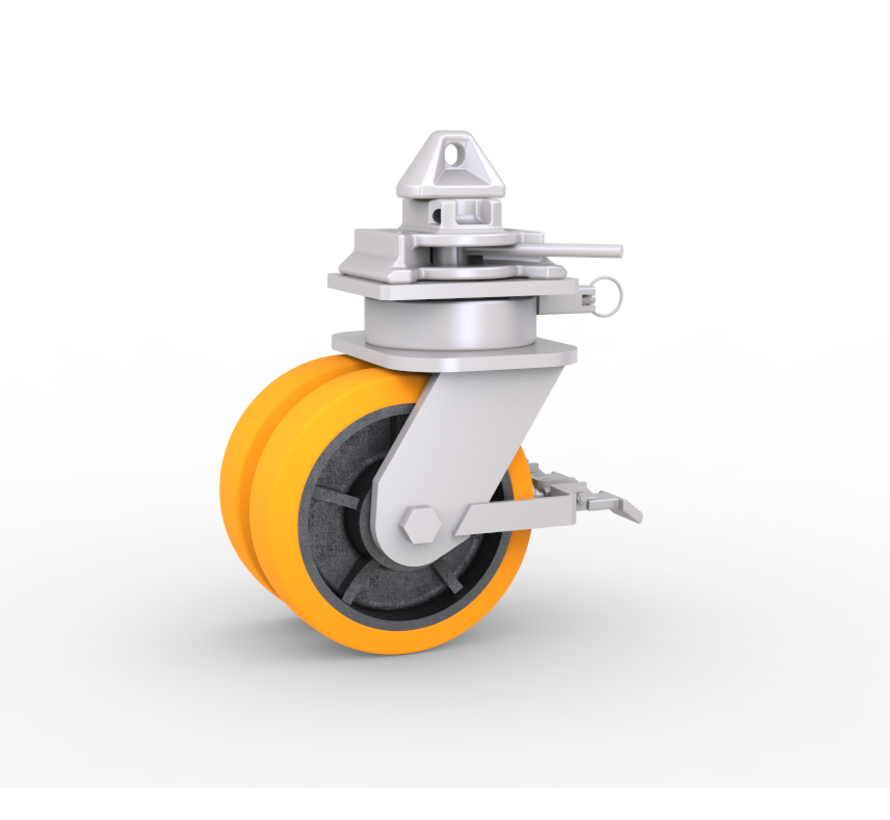

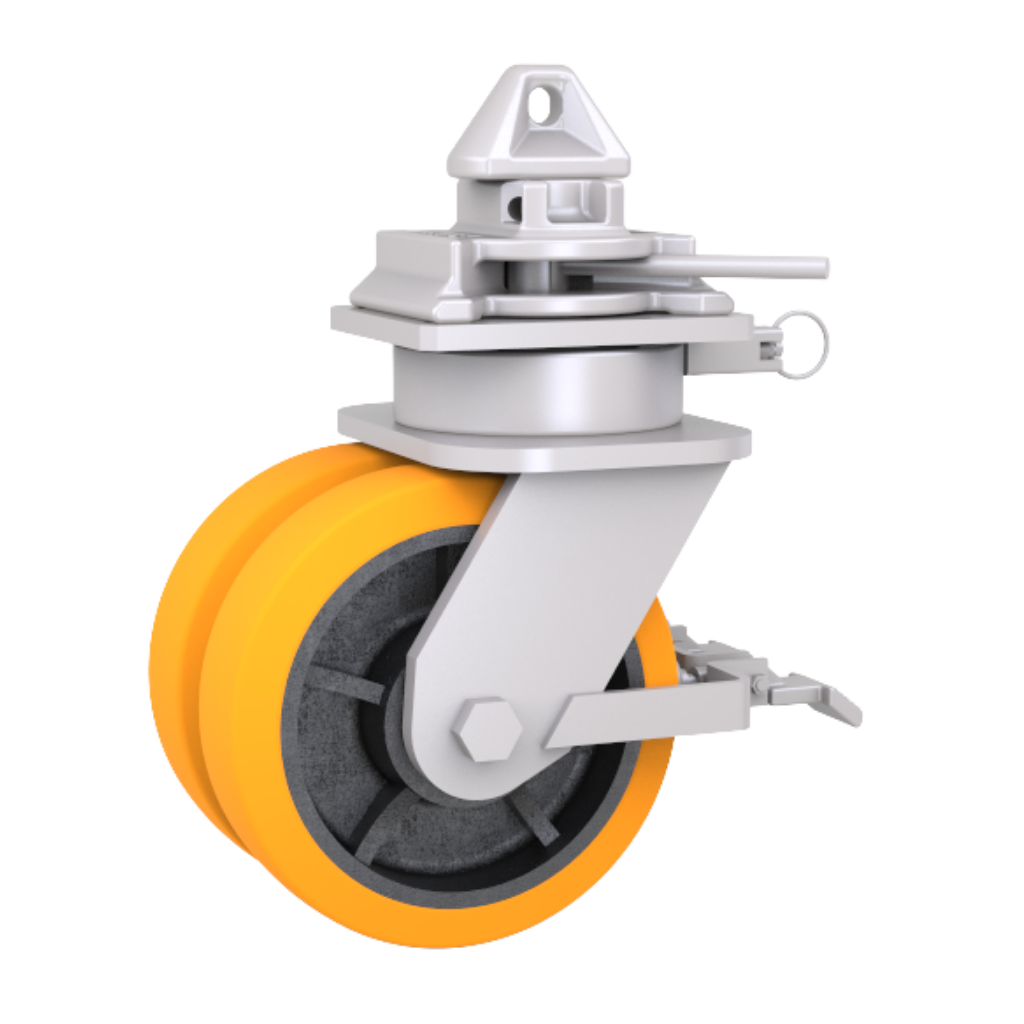

2 x swivel castor wheels with brake nr: 121826255ZL4
2 x swivel castor wheels nr: 121826252ZL4

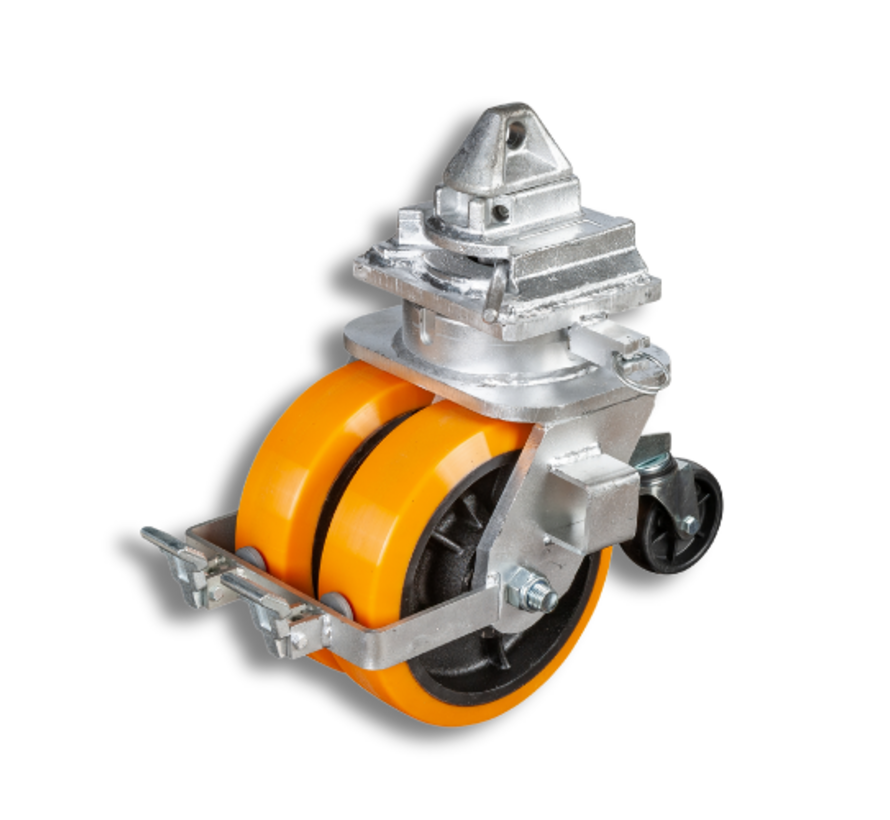

2021 product update: These shipping container castors are now equipped with a directional lock to improve the towing of the container.
How to move shipping containers with loads up to 13,500 KG?

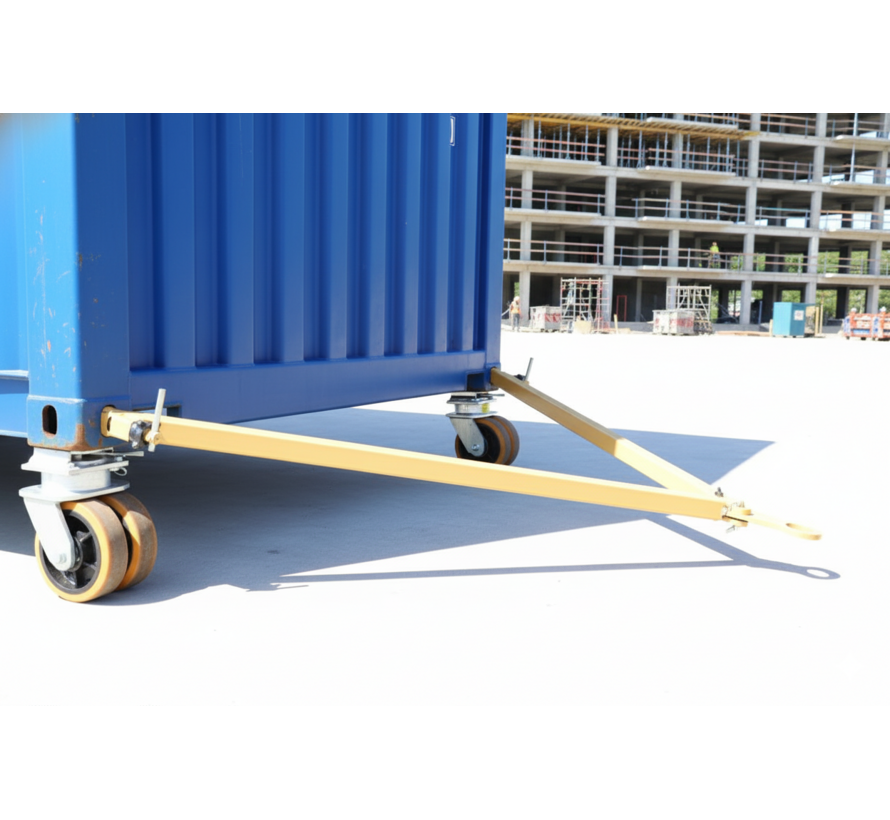

These tow castors with heavy-duty wheels are designed to rigidly clamp to ISO 1161 corner fittings of standard freight containers, mobile generator containers and military communication containers. They provide an efficient way of mobilizing containers with NEN ISO 1161-corners speeds up to a maximum of 6 km/h (3.8 mph)

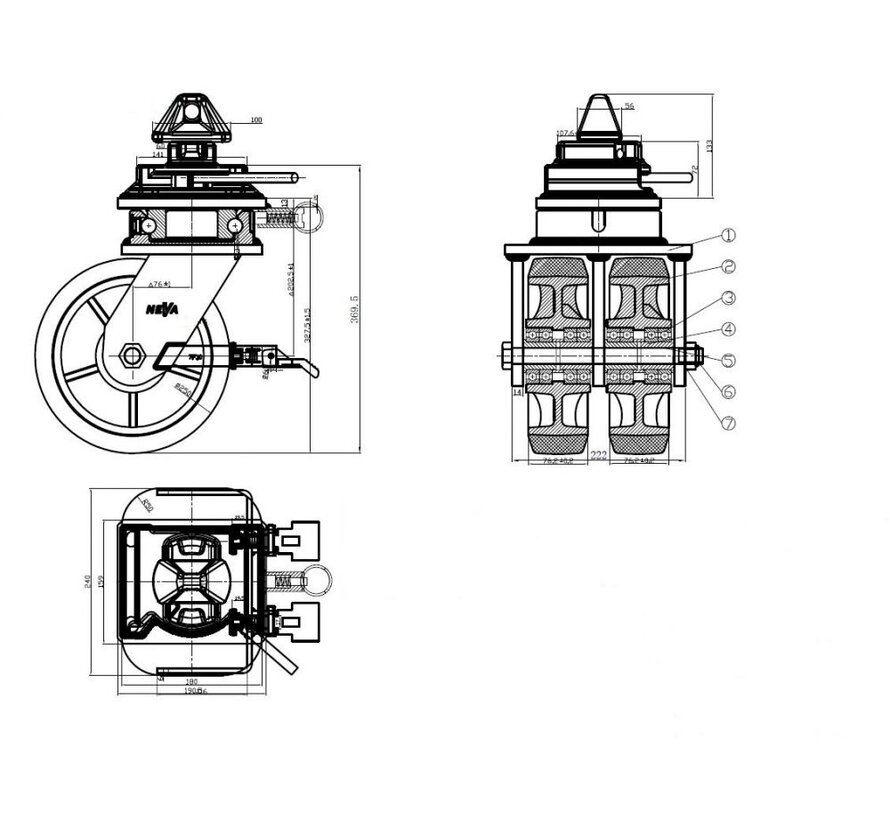

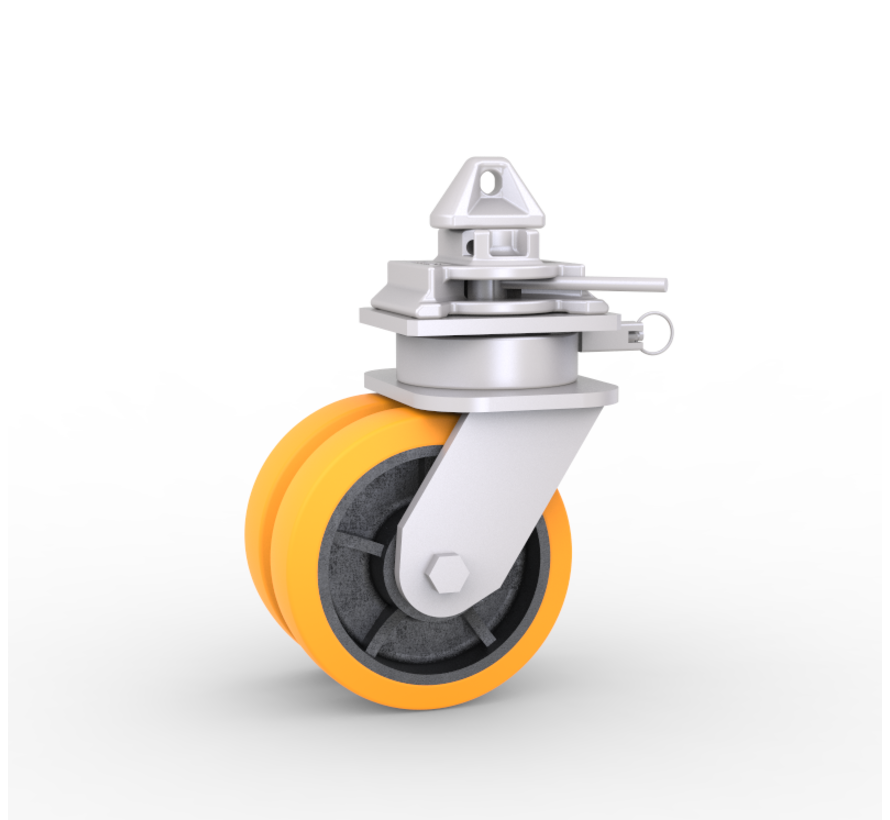

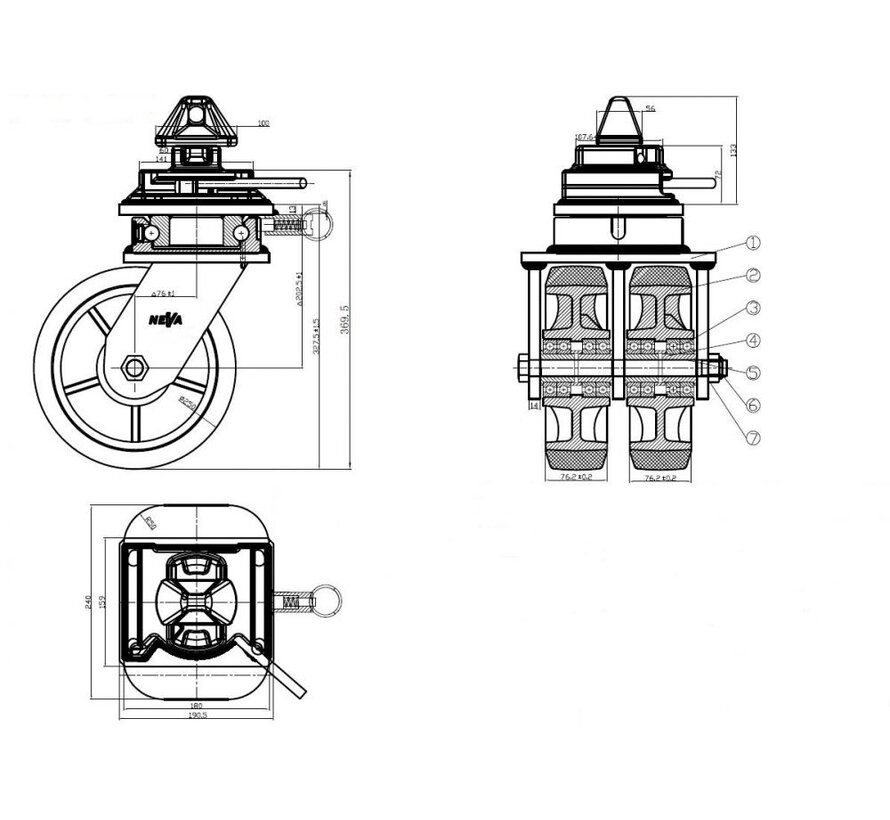

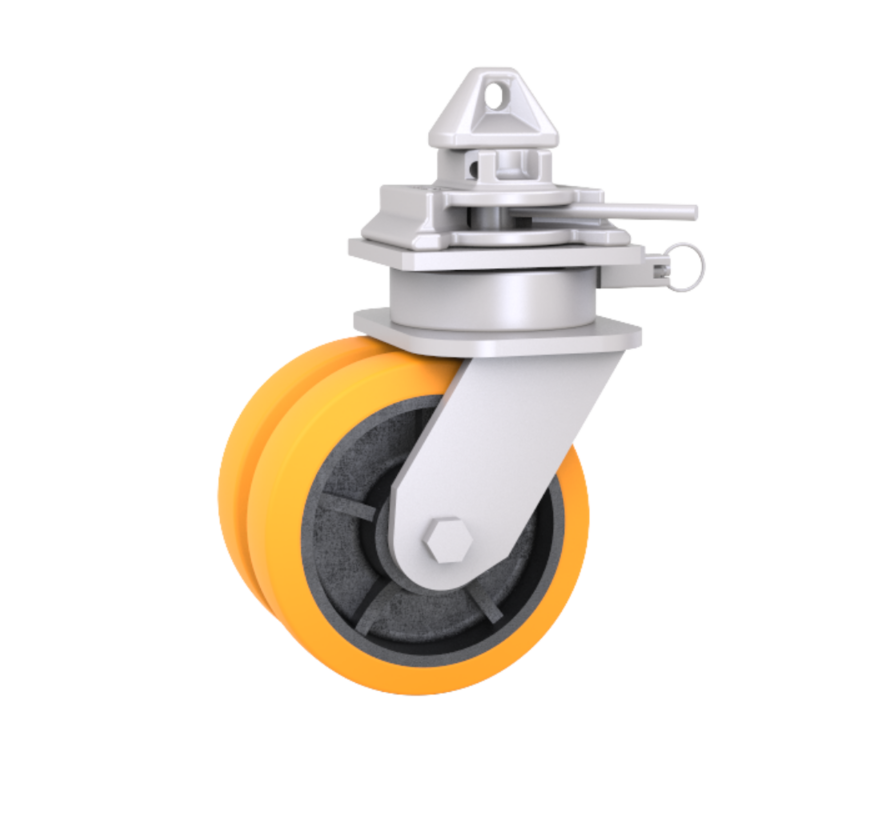

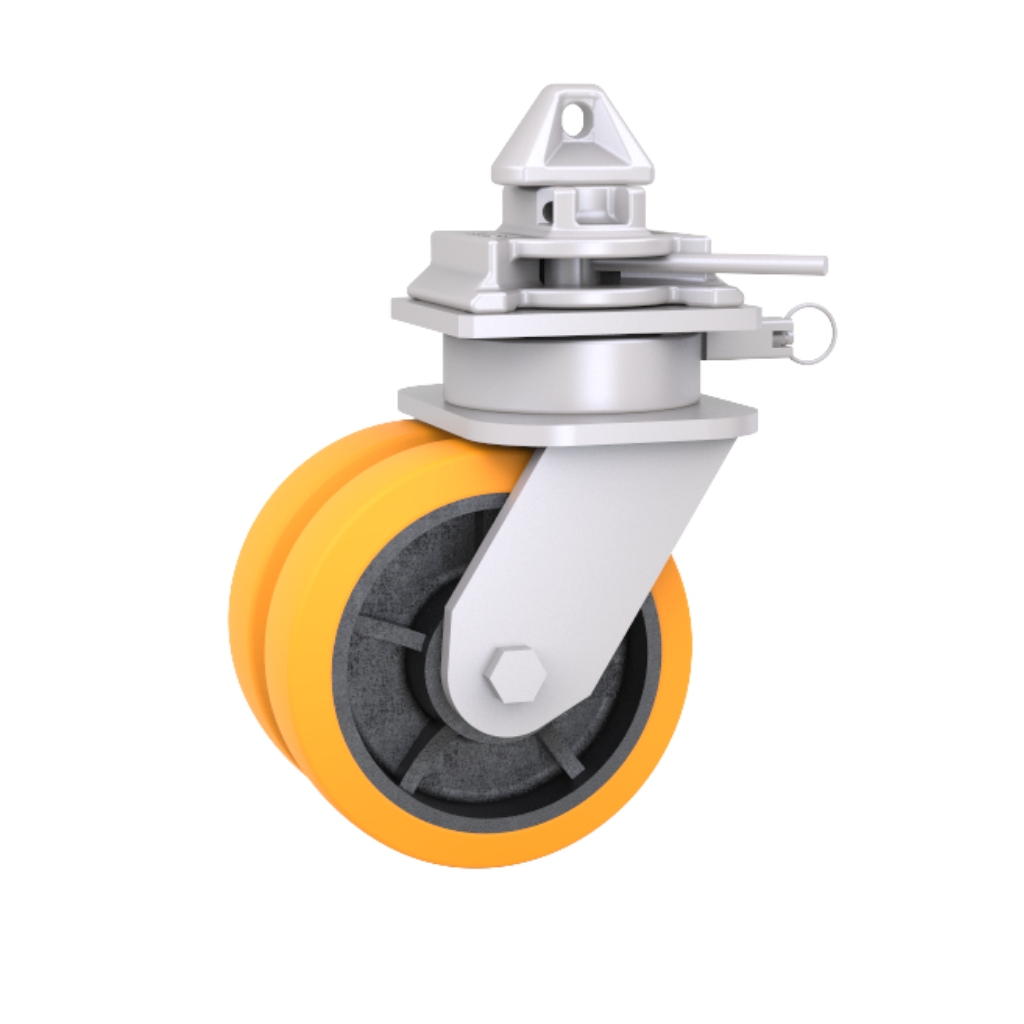

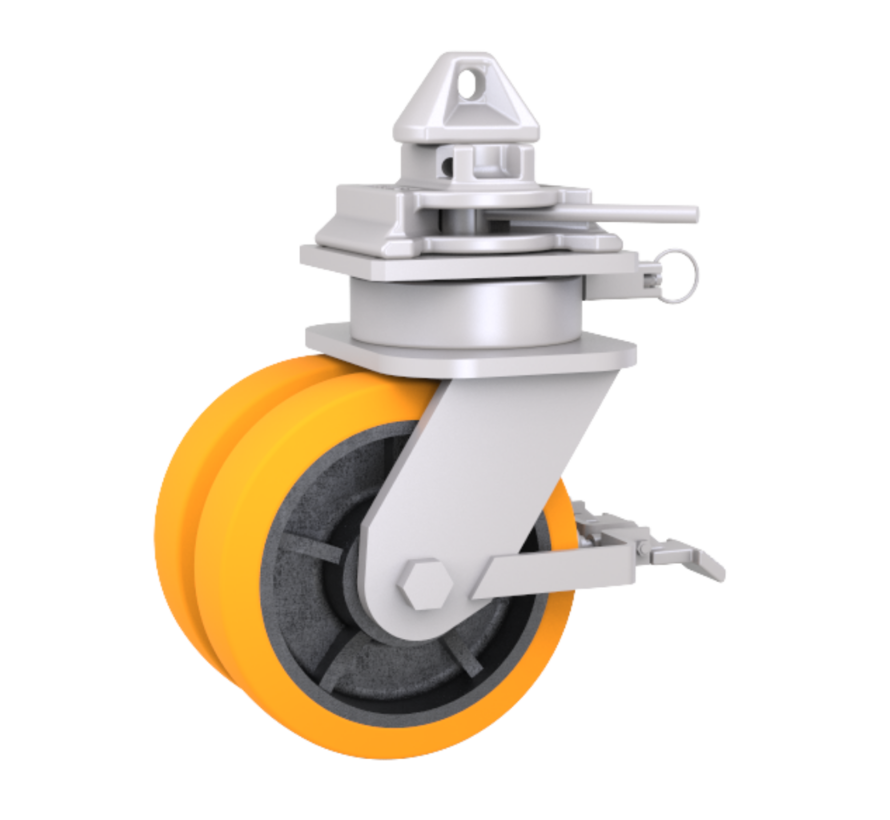

Each swivel castor support system has a twist-lock fitting assembled with 2 polyurethane wheels for maximum stability and safety. Wheel diameter 250 mm x wheel width 76 mm. These wheels have cast iron centres and polyurethane treads. This allows the wheels to roll very smooth and carry heavyweight both at the same time.

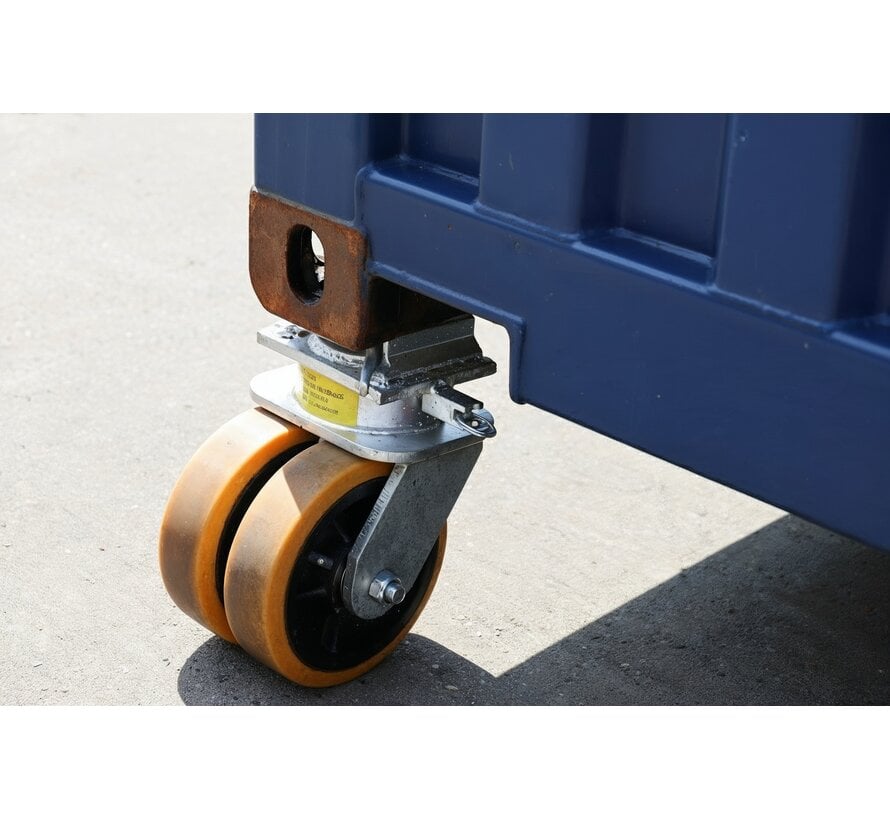

A complete set consists of four castors that lock from below into corner castings incorporated into all containers with DIN ISO 1161-corner. please note that our offer is made per individual wheel. you would need to order 4 wheels to get a complete set to move a container.
Applications: moving containers in and out of facilities, alterations, upfits or for complexing and loading shelters. The Container Casters are very rugged products, available in a wide range of capacities and wheel types for different surfaces. p[lease contact our specialists
Sea freight container swivel tow castor system with ISO twist lock | Set of 4 castors offers a maximum load capacity of 18,000kg.
set specifications:
- Static carrying capacity per castor: up-to 4.5 t
- Dynamic carrying capacity per castor: up-to 3.3 t
- Static carrying capacity system: up-to18 t static
- Dynamic carrying capacity system: up-to 13.5 t dynamic
- Dynamic service speed: maximum 6 km/h
- Locking: DIN ISO 1161-corner from below
- corrosion protection: steel parts galvanic zinc, high-grade steel parts
Contact us with all your request for customizations
