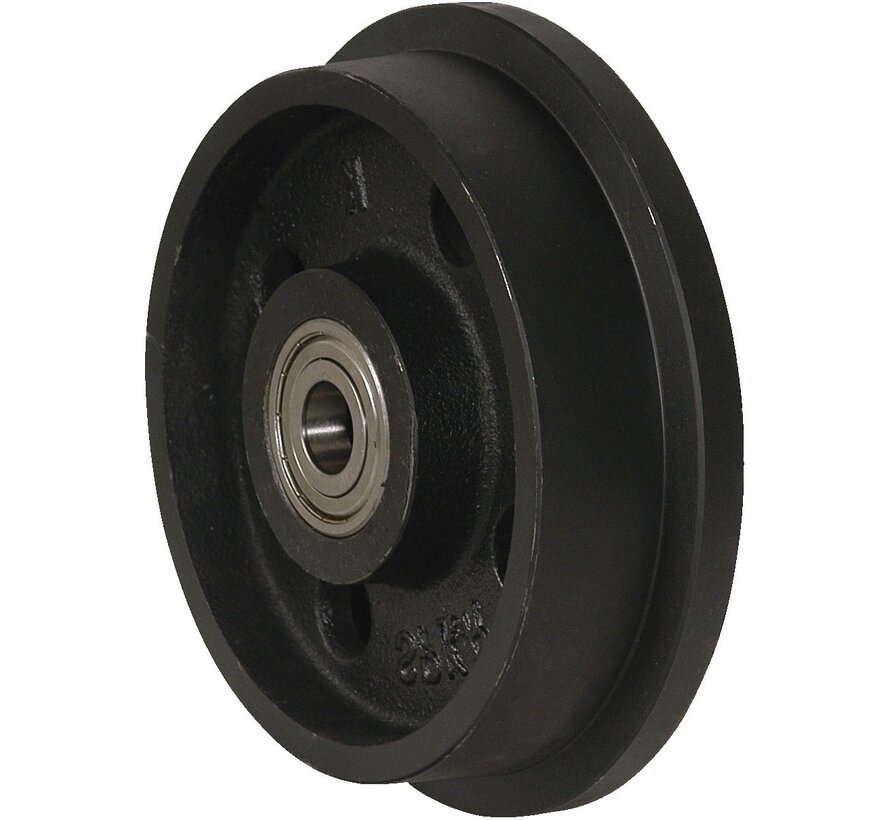

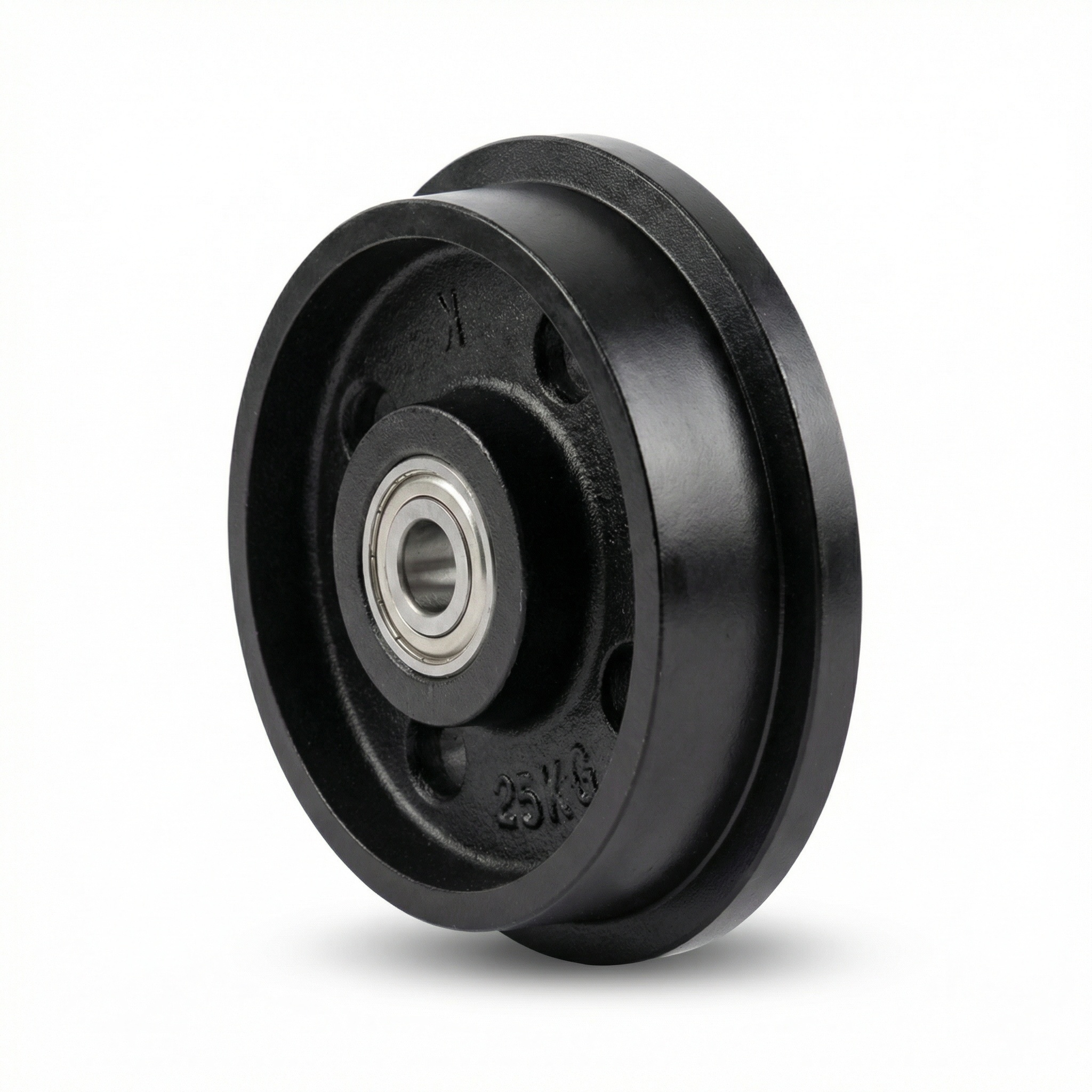

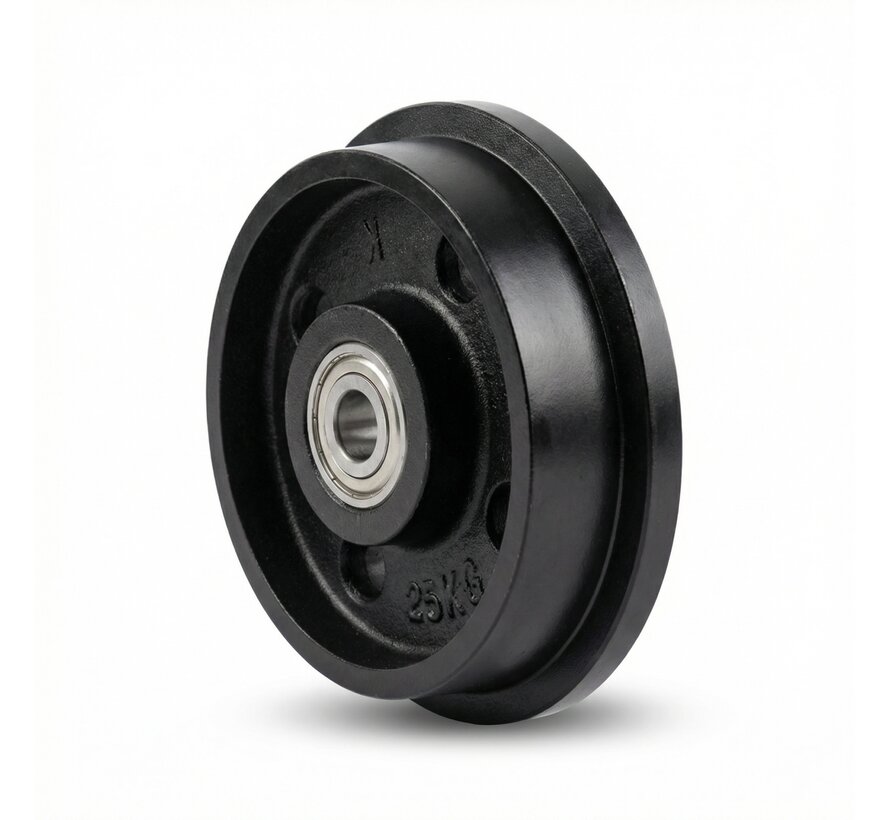

Flanged wheel / track roller from cast iron and double ball bearing, Wheel-Ø50mm, 400KG

Product description

Track roller and Flanged wheel from cast iron, precision ball bearing, Wheel-Ø 50mm, 400KG
ball bearing Ø 15 mm

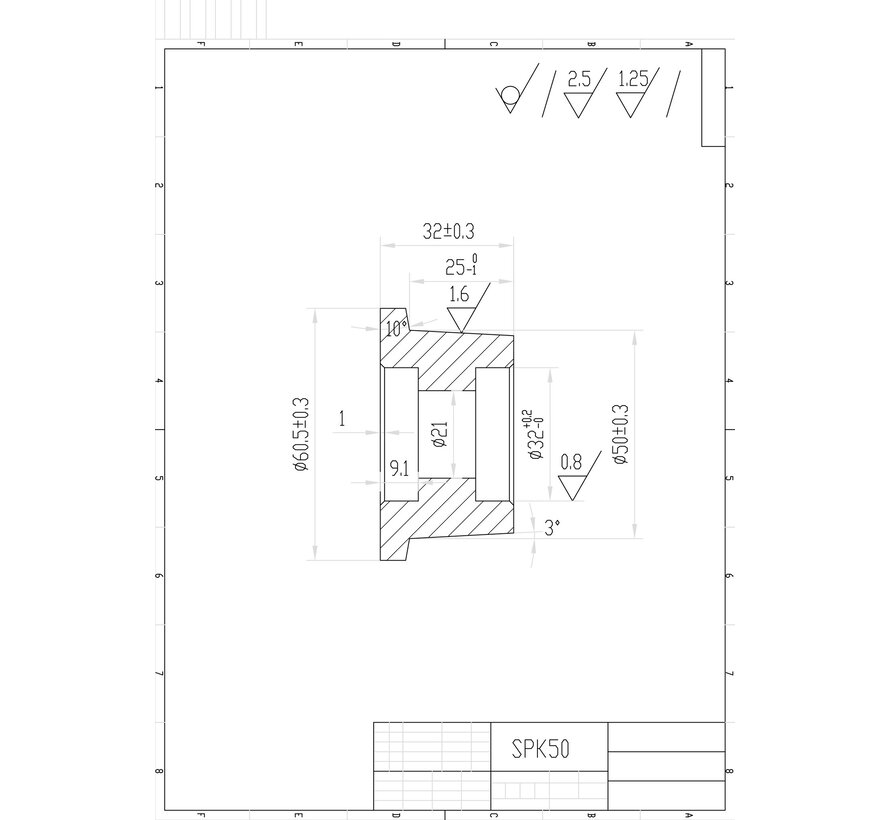

SPK 50K: Wheel centre from cast iron, double ball bearing

Wheel: cast iron wheel, with wheel core made of cast iron wheel, precision ball bearing,

Advantages: Single flange wheels made of special cast iron, in painted finish. The flange and tread are cleanly turned. The tread runs off the flange at an angle of 3 degrees. A grease nipple is fitted from a diameter of 150 mm. The wheels are available with plain or ball bearings.



Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Flanged wheel / track roller from cast iron and double ball bearing, Wheel-Ø50mm, 400KG

Track roller and Flanged wheel from cast iron, precision ball bearing, Wheel-Ø 50mm, 400KG
ball bearing Ø 15 mm

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 100026500
  • EAN 8718116217879

Specifications

  • Wheel diameter (mm) 50
  • Wheel witdh (mm) 26/32
  • Load capacity (kg) 400
  • Bearing type precision ball bearing
  • Tread description Flange wheel made of high-quality cast iron. The track crown and tread are cleanly turned off. The tread descends from the track crown at an angle of 3 degrees.
  • Wheel centre material Made of high-quality cast iron, very solid
  • Type of wheel Flange / Track / Diabolo wheels
  • Wheel width without flange 50
  • Wheel diameter inc flange 125
  • Hub length (mm) 32
  • Flange type 109
  • Diameter with flange 60
  • Flange Thickness / Width 7
  • Axle hole-Ø (mm) 15
  • Series 100.02
  • F: flange thickness 7
  • Tread cast iron wheel
