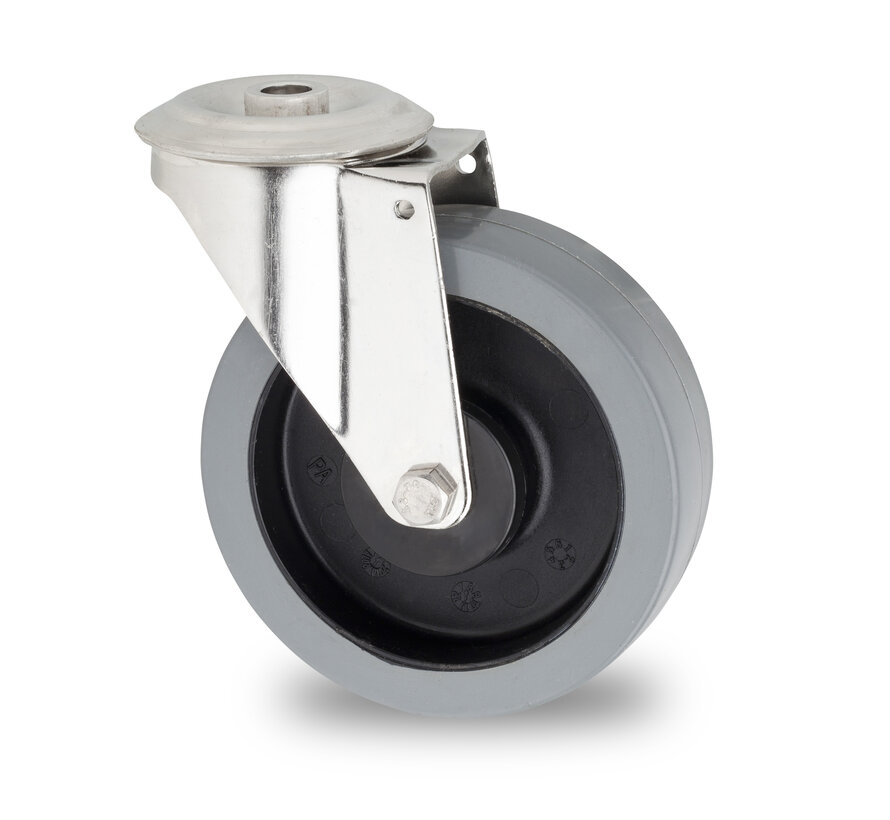

swivel castor, Ø 100mm, padded elasticated rubber tyre, 150KG

Product description

Stainless steel transport castor made of stainless steel (pressed), bolt hole mounting, vulcanized elastic rubber tire, 2-RS ball bearings, Wheel Ø 100mm, 150KG

wheel: vulcanised elastic rubber tyre, with polyamide wheel core, 2-RS ball bearings with labyrinth seal

Advantages: Versatile use with excellent rolling properties. Low-noise and low-vibration, streak-free.

Applications: Food industry, pharmaceutical industry, laundry containers, serving trolleys, bakeries, meat processors, butchers, slaughterhouses, fruit shops, greengrocers, hotels, restaurants, catering, café, fish processing plants, fish trade, supermarkets.

Suitable substrate:
Suitable environment: Dry as well as damp. With many chemicals and saturated steam.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor, Ø 100mm, padded elasticated rubber tyre, 150KG

Stainless steel transport castor made of stainless steel (pressed), bolt hole mounting, vulcanized elastic rubber tire, 2-RS ball bearings, Wheel Ø 100mm, 150KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 190568100G
  • EAN 8718116180722

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 100
  • Load capacity (kg) 150
  • Overall height (mm) 128
  • Swivel offset (mm) 38
  • Swivel Radius 88
  • Bearing type Ball bearing
  • Hardness of tread 80° Shore A
  • Tread description Wheel with grey elastic rubber tyre (vulcanised). Does not leave streaks on your floor.
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor
  • Fitting Bolt hole fixing
  • Fork material Stainless steel AISI 304
  • Fork 190.008
  • Bolt hole diameter 12.2
  • Series 90.56
  • Tread Solid rubber
