Wheel: Thermoplastic rubber tyre, with polyamide wheel core, central ball bearing, thread protectors
Advantages: Versatile use with excellent rolling properties. Low-noise and vibration damping, streak-free.
Applications: flight case, roll container castors, industrial trolleys, flight case, theatre & entertainment
Suitable surfaces: Almost any surface. Uneven surfaces such as clinkers, damaged floors and near obstacles such as thresholds.
Suitable environment : Dry and not permanently damp. With weak chemicals.

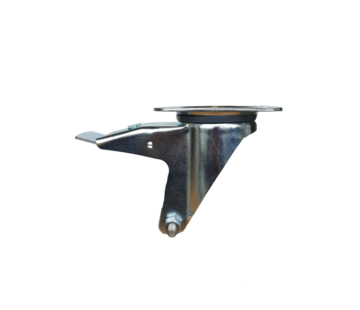

swivel castor, Ø 200 mm, thermoplastic rubber tyre, 300KG
Product description
Quality & Service since 1946
Quality & Service since 1946
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.
Product information
- SKU 146366204
- EAN 8718116214519
Specifications
- Non marking tread Yes
- Wheel diameter (mm) 200
- Wheelwitdh (mm) 50
- Load capacity (kg) 300
- Overall height (mm) 235
- Size of top plate (mm) 138x105
- Topplate hole centres (mm) 105x80
- Plate hole (mm) 11
- Offset (mm) 50
- Swivel Radius 150.0
- Bearing type Ball bearing
- Castor wheel type Swivel castor with brake
- Fitting Plate mounting
- Fork material Galvanised
- Brake Brake blocks both the turning and swivelling movement of the wheel
- Series 46.36S
- Tread Solid rubber
