industrial elastic rubber swivel castor
housing / bracket: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: elastic-tyre, with wheel centre from polyamide, 2-RS precision ball bearings, threadguards with labyrinth seal
Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping, non-marking.
Applications: flight case, roll cage castor, trolleys for industrial handling, flight case , theatre & entertainment, blue elastic rubber
Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds.
Suitable environment: Dry and not permanently humid. For mild chemicals.
![](https://cdn.webshopapp.com/shops/352868/themes/183049/v/2130798/assets/logo.png?20231211163120)
![](https://cdn.webshopapp.com/shops/352868/themes/183049/v/2130798/assets/logo.png?20231211163120)

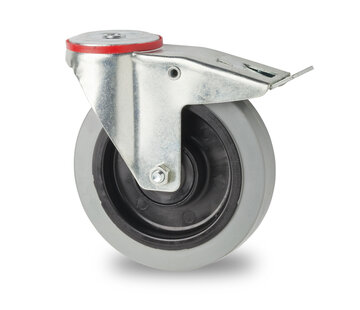

swivel castor, Ø 200mm, elastic-tyre, 400KG
Product description
Quality & Service since 1946
Quality & Service since 1946
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.
Product information
- SKU 140566200G
- EAN 8718116186519
Specifications
- Non marking tread Yes
- Wheel diameter (mm) 200
- Load capacity (kg) 400
- Overall height (mm) 235
- Offset (mm) 60
- Swivel Radius 160.0
- Bearing type Ball bearing
- Hardness of tread 80° Shore A
- Tread description Wheel with grey elastic rubber tyre (vulcanised). Does not leave streaks on your floor.
- Temperature -20 / +60°C
- Castor wheel type Swivel castor
- Fitting Bolt hole fixing
- Fork material Galvanised
- Fork Transport wheel Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
- Bolt hole diameter 13
- Series 40.56G
- Tread Solid rubber
