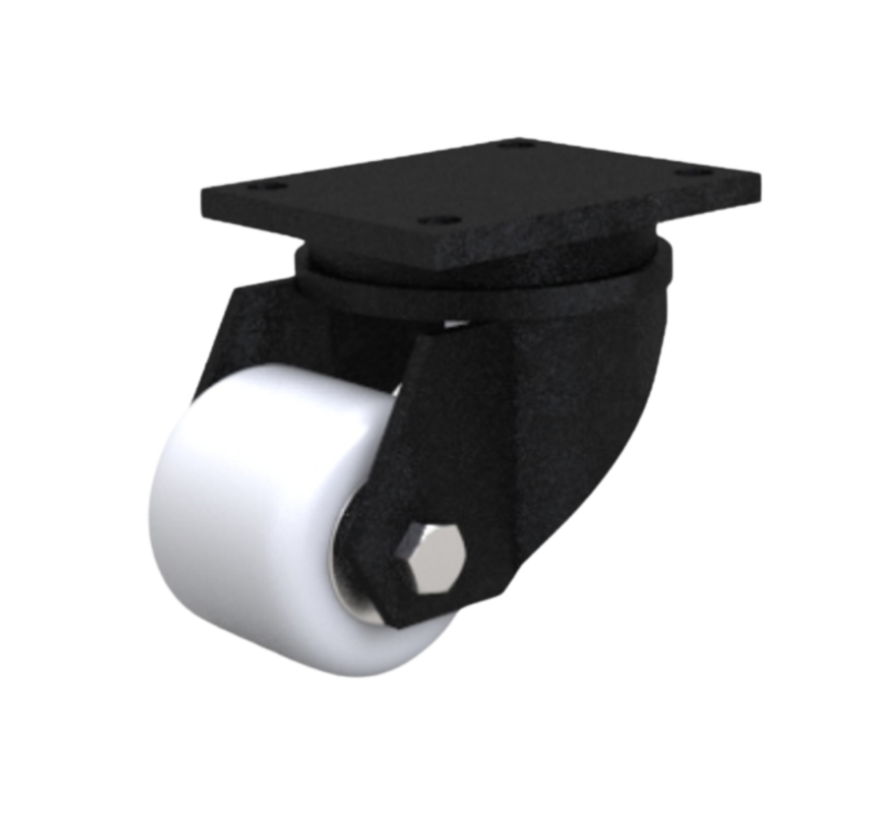

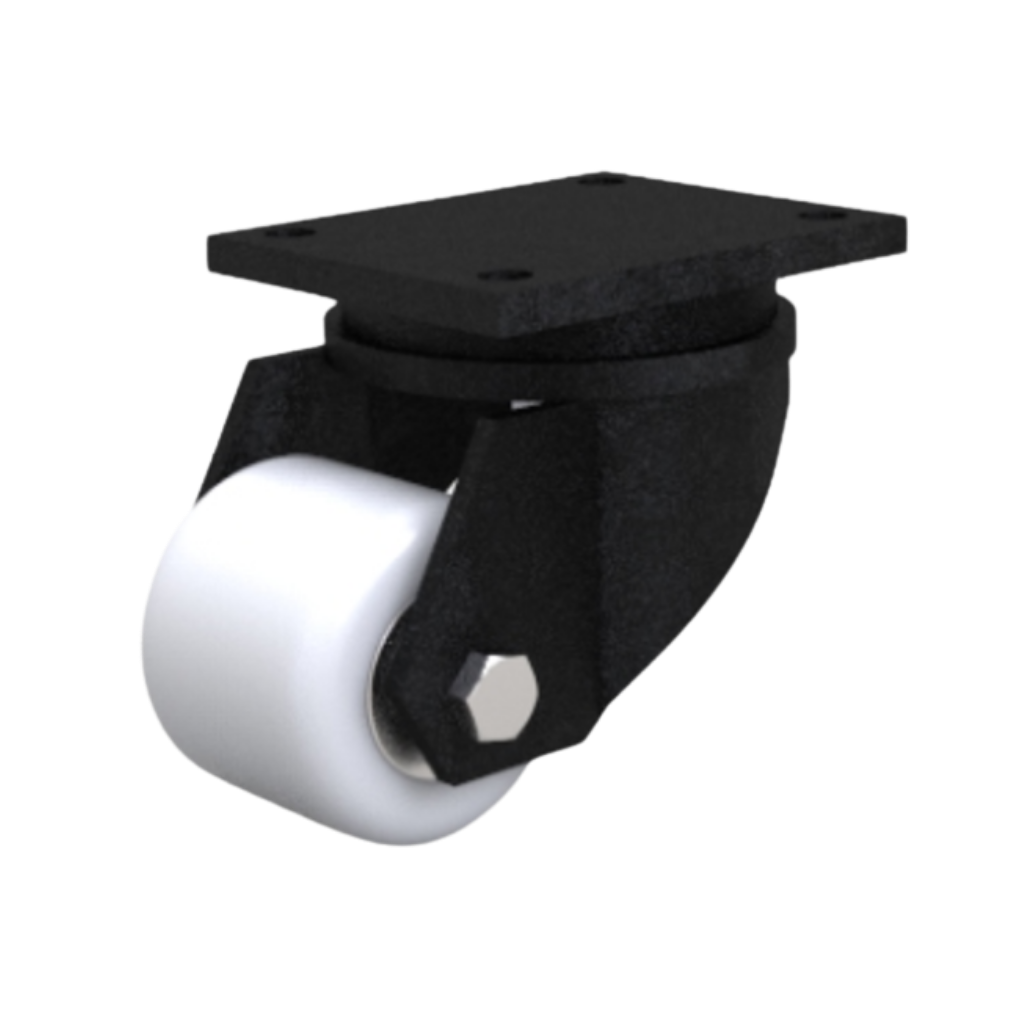

Heavy duty Swivel caster from Welded steel housing, plate fitting, Polyamide wheel, precision ball bearing, Wheel-Ø 85mm, 700KG

Product description

Heavy duty Swivel caster from Welded steel housing, plate fitting, Polyamide wheel, precision ball bearing, Wheel-Ø 85mm, 700KG

Heavy duty Polyamide (PA6) Swivel caster

Housing: Welded steel housing, with dual purpose bearing and tapered roller bearing, Painted black, plate fitting
Wheel: Polyamide wheel, precision ball bearing,

Features: For heavy transport on smooth floors. Very low rolling resistance. Smooth surface, hygienic.

Applications: Heavy material handling, heavy containers, Automobile factories, Petrochemical plants, heavy transportation, Ports, Armed forces, Aviation, Bridge cranes, Metal, chemical companies.

Suitable surface: Smooth and hard surface such as tile, cement and coatings.
Suitable environment: Dry and not permanently humid. For many chemicals, and for saturated steam

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Heavy duty Swivel caster from Welded steel housing, plate fitting, Polyamide wheel, precision ball bearing, Wheel-Ø 85mm, 700KG

Heavy duty Swivel caster from Welded steel housing, plate fitting, Polyamide wheel, precision ball bearing, Wheel-Ø 85mm, 700KG

Manufactured to order

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: Manufactured to order

Product information

  • SKU 103336851
  • EAN 8718116171713

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 85
  • Wheelwitdh (mm) 70
  • Load capacity (kg) 700
  • Overall height (mm) 135
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Plate hole (mm) 13
  • Offset (mm) 68
  • Swivel Radius 102
  • Bearing type precision ball bearing
  • Temperature -20 / +80°C
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Series 3.33
  • Tread Plastic
