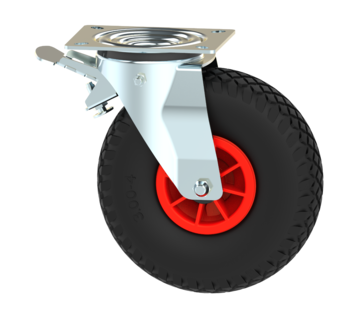

Industrial Swivel caster from pressed steel, plate fitting, pneumatic tyre block profile, plain bearing, Wheel-Ø 260mm, 150KG

Product description

Industrial Swivel caster from pressed steel, plate fitting, pneumatic tyre block profile, plain bearing, Wheel-Ø 260mm, 150KG

Industrial Pneumatic Swivel caster

Housing: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: pneumatic tyre block profile, with Wheel centre from Polyamide, plain bearing,

Features: For medium heavy transport, such as shock sensitive products or on an irregular / unpaved surface. Low noise and vibration dampening.

Applications: Excellent shock absorption. Low rolling resistance on uneven floors. Very floor saving due to the air cushion.

Suitable surface: Virtually every surface, inside and outside. Uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. Unpaved surfaces.
Suitable environment: Permanently dry and not humid. By weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Swivel caster from pressed steel, plate fitting, pneumatic tyre block profile, plain bearing, Wheel-Ø 260mm, 150KG

Industrial Swivel caster from pressed steel, plate fitting, pneumatic tyre block profile, plain bearing, Wheel-Ø 260mm, 150KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 146542260
  • EAN 8718116104056

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 260
  • Wheelwitdh (mm) 85
  • Load capacity (kg) 150
  • Overall height (mm) 290
  • Size of top plate (mm) 175x140
  • Topplate hole centres (mm) 140x105
  • Plate hole (mm) 11
  • Offset (mm) 70
  • Swivel Radius 200
  • Bearing type roller bearing
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Tyre size 3.00-4
  • Ply Rating (PR) 4
  • Series 46.54
  • Tread Pneumatic tyre
