Wheel: injection-moulded polyurethane, with polyamide wheel core, ball bearing
Advantages: For medium-heavy transport on flat floors and for long-term static use under load. Very low rolling resistance. Relatively insensitive to damage and wear.
Applications: Industrial trolleys, material handling in factories, waste containers, transport containers, metal and chemical plants, medium-load roll containers, tool trolleys, warehouse trolleys.
Suitable surfaces: Hard and flat such as tiles, cement and coatings.
Suitable environment : Both indoors and outdoors. For alcohol, glycol, mineral oils and greases.
![](https://cdn.webshopapp.com/shops/352868/themes/183049/v/2130798/assets/logo.png?20231211163120)
![](https://cdn.webshopapp.com/shops/352868/themes/183049/v/2130798/assets/logo.png?20231211163120)

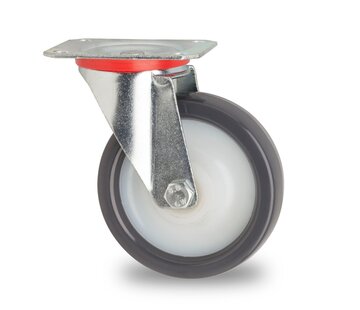

swivel castor with brake, Ø 100 mm, casted polyurethane, 180KG
Product description
Quality & Service since 1946
Quality & Service since 1946
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.
Product information
- SKU 146956104
- EAN 8718116198512
Specifications
- Non marking tread Yes
- Wheel diameter (mm) 100
- Wheelwitdh (mm) 36
- Load capacity (kg) 180
- Overall height (mm) 128
- Size of top plate (mm) 105x80
- Topplate hole centres (mm) 80x60
- Plate hole (mm) 9
- Offset (mm) 37
- Swivel Radius 87.0
- Bearing type Central ball bearing
- Hardness of tread 95° Shore A
- Tread description Wheel with injected polyurethane (PU) tyre
- Castor wheel type Swivel castor with brake
- Fitting Plate mounting
- Fork material Galvanised
- Fork Transport wheel Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
- Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
- Series 46.95
- Tread Polyurethane
