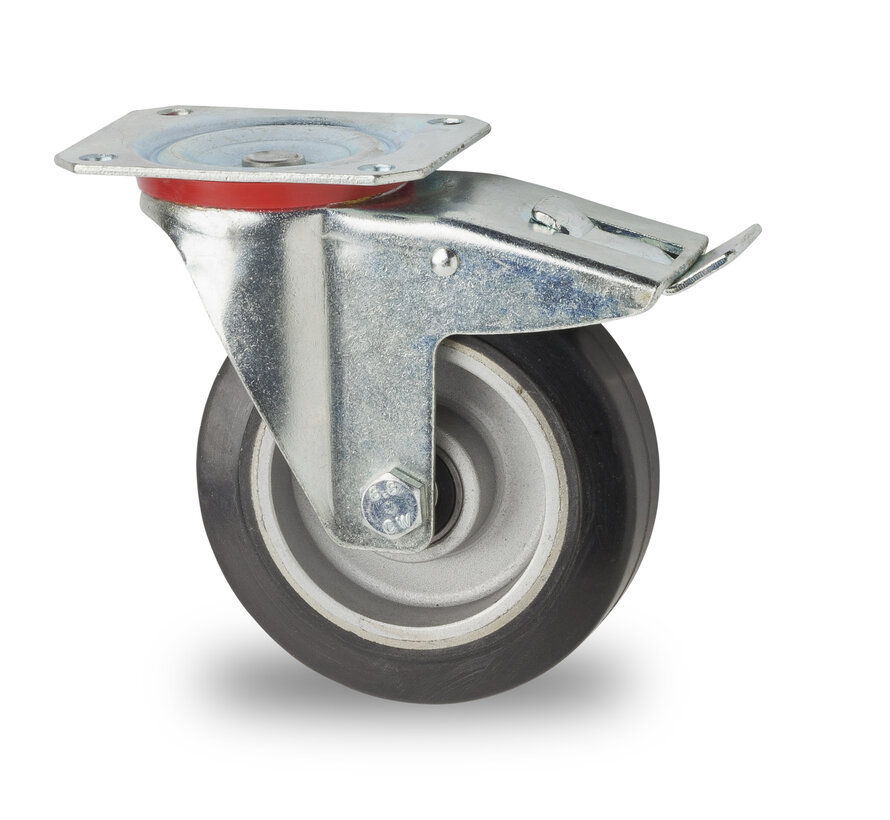

swivel castor with brake, Ø 100 mm, elasticated rubber tyre, 150KG

Product description

Transport swivel castor with brake made of pressed sheet steel, plate fitting, elasticated rubber tyre, precision ball bearing, Wheel-Ø 100mm, 150KG

Wheel: elastic rubber tyre, with wheel core made of aluminium, precision ball bearing,

Advantages: Versatile use with excellent rolling properties. Low-noise and vibration damping.

Applications: Industrial trolleys, material handling in factories, waste containers, transport containers, metal and chemical plants, medium-load roll containers, tool trolleys, warehouse trolleys.

Suitable surfaces: Almost any surface. Uneven surfaces such as clinkers, damaged floors and near obstacles such as thresholds.
Suitable environment : Dry and not permanently damp. With weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 100 mm, elasticated rubber tyre, 150KG

Transport swivel castor with brake made of pressed sheet steel, plate fitting, elasticated rubber tyre, precision ball bearing, Wheel-Ø 100mm, 150KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 146116104
  • EAN 8718116101727

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 100
  • Wheelwitdh (mm) 40
  • Load capacity (kg) 150
  • Overall height (mm) 128
  • Size of top plate (mm) 105x80
  • Topplate hole centres (mm) 80x60
  • Plate hole (mm) 9
  • Offset (mm) 37
  • Swivel Radius 87
  • Bearing type precision ball bearing
  • Hardness of tread 70° Shore A
  • Tread description Elastic black vulcanised rubber tyre, with the shock-absorbing properties and low rolling resistance.
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
  • Series 46.11
  • Tread Solid rubber
