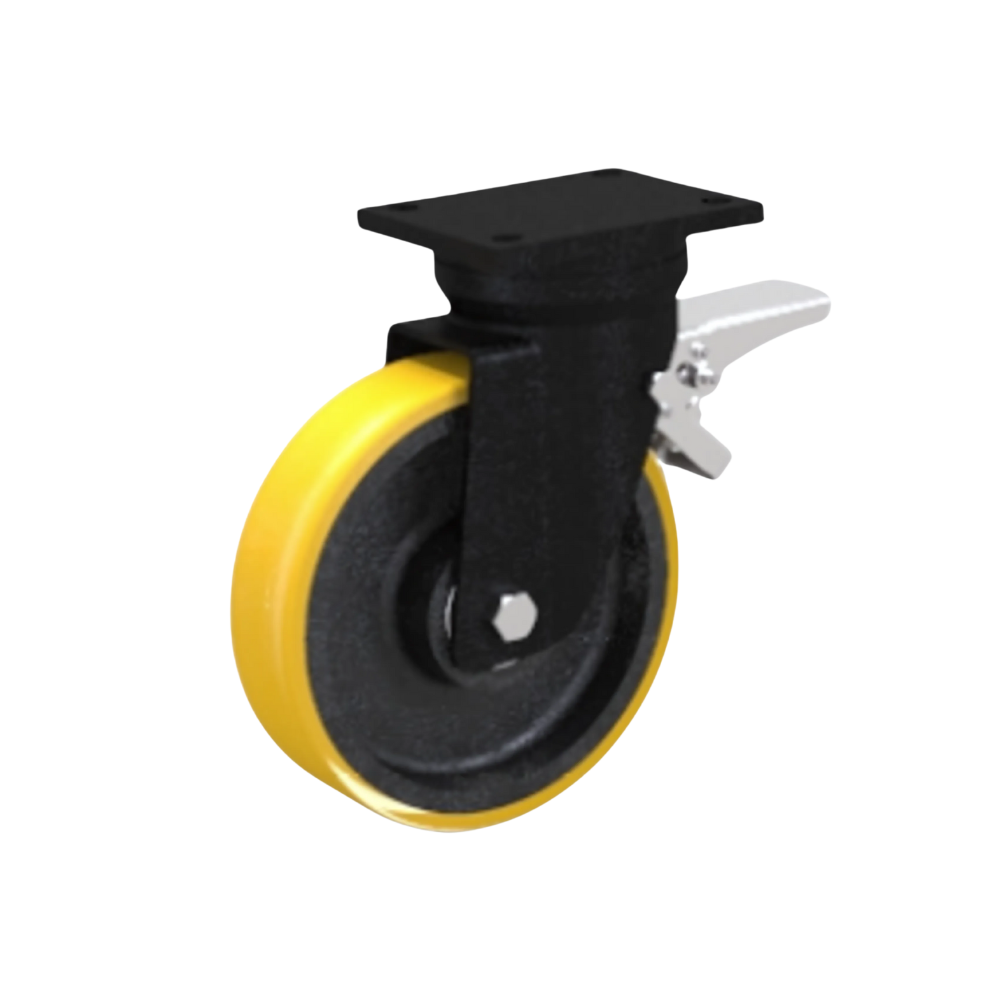

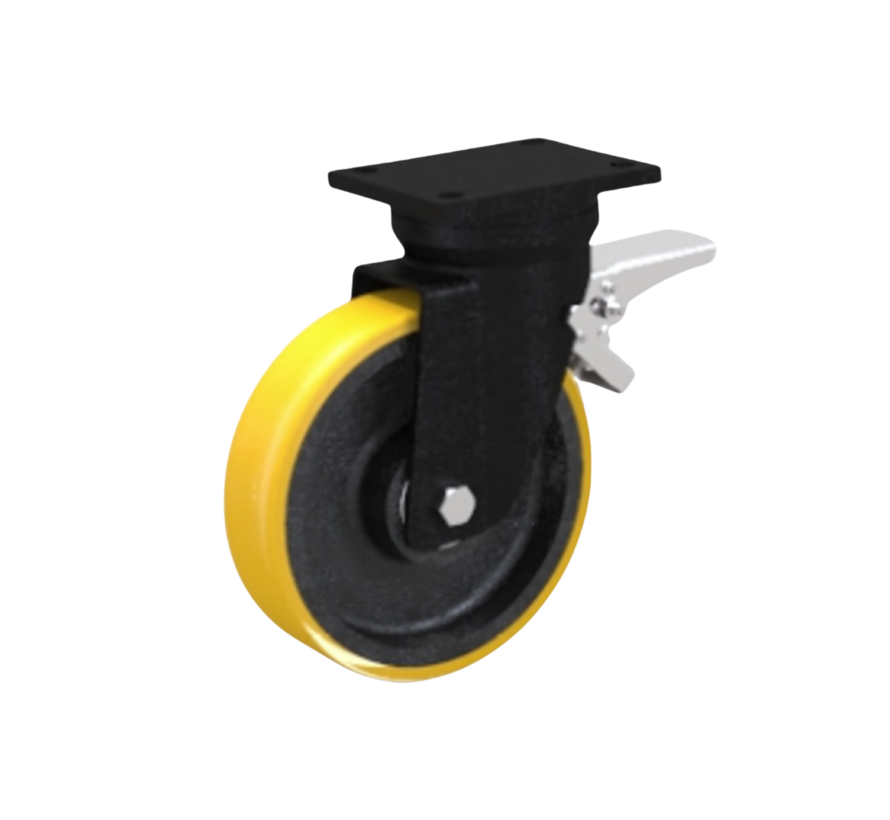

Heavy duty Swivel caster brake from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 100mm, 300KG

Product description

Heavy duty Swivel caster brake from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 100mm, 300KG

Heavy duty Polyurethane (PU) Swivel caster with brake

Housing: Welded steel housing, Total lock, with dual purpose bearing and tapered roller bearing, Painted black, plate fitting
Wheel: Vulcanized Polyurethane tread, with Wheel centre from cast iron, precision ball bearing,

Features: For transport of very heavy loads on smooth floors. Low rolling resistance. Abrasion-resistant, high cut and tear propagation resistance and very durable

Applications: Heavy material handling, heavy containers, Automobile factories, Petrochemical plants, heavy transportation, Ports, Armed forces, Aviation, Bridge cranes, Metal, chemical companies.

Suitable surface: Smooth and hard surface such as tile, cement and coatings.
Suitable environment: Permanently dry and not humid. For alcohol, glycol and many acids, alkalis and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Heavy duty Swivel caster brake from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 100mm, 300KG

Heavy duty Swivel caster brake from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 100mm, 300KG

Manufactured to order

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: Manufactured to order

Product information

  • SKU 103646105
  • EAN 8718116171928

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 100
  • Wheel witdh (mm) 40
  • Load capacity (kg) 300
  • Overall height (mm) 150
  • Size of top plate (mm) 100x 85
  • Topplate hole centres (mm) 80x60
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 36
  • Swivel Radius 86
  • Bearing type precision ball bearing
  • Hardness of tread 91° Shore A
  • Temperature -20 / +80°C
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Series 3.64
  • Tread vulcanized polyurethane tread
