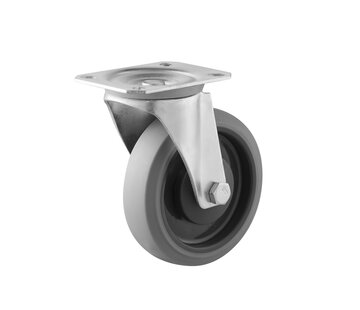

swivel castor with brake, Ø 125, grey non-marking thermoplastic rubber tyre, 160KG

Product description

transport swivel castor with brake made of pressed sheet steel, plate mounting, gray non-marking thermoplastic rubber tyre, Wheel Ø 125, 160KG

Wheel: grey non-marking TPR rubber tyre, with polypropylene wheel core, central ball bearing,

Advantages: The solid rubber tyres have a hardness of 85° Shore A and offer good driving characteristics, roll silently, are impact and shock resistant, corrosion resistant and have medium rolling resistance.

Applications: Versatile use for light transport in e.g. offices, warehouses, shops and institutions. Low-noise, impact-resistant and vibration-damping. Swivel castor for light applications. Less suitable for continuous static use under maximum load.

Suitable surface: Flat or slightly uneven. Non-striping tyre for use on ceramic tiles, linoleum, etc.
Suitable environment : Dry and not permanently damp. With light acids and bases.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 125, grey non-marking thermoplastic rubber tyre, 160KG

transport swivel castor with brake made of pressed sheet steel, plate mounting, gray non-marking thermoplastic rubber tyre, Wheel Ø 125, 160KG

Depending on quantity

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: Depending on quantity

Product information

  • SKU 146686123
  • EAN 8718116219040

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 125
  • Wheel witdh (mm) 36
  • Load capacity (kg) 160
  • Overall height (mm) 155
  • Size of top plate (mm) 105x85
  • Topplate hole centres (mm) 80x60
  • Mounting hole diameter (mm) 9
  • Swivel offset (mm) 40
  • Swivel Radius 102
  • Bearing type Central ball bearing
  • Hardness of tread 85° Shore A
  • Tread description Grey thermo (TPR) rubber
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
  • Series 46.68
  • Tread Solid rubber
