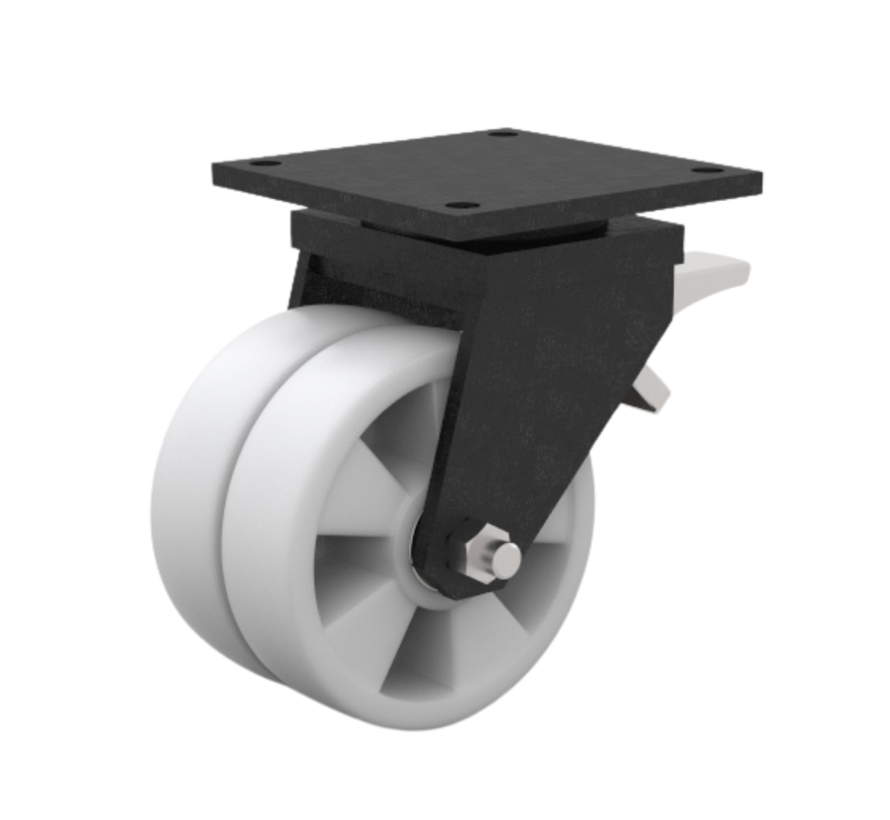

swivel castor with brake, Ø 150mm, nylon (PA6), 1000KG

Product description

heavy duty swivel castor made of welded steel fork, plate mounting, hard nylon (PA6), precision ball bearing, Wheel Ø 150mm, 1000KG

Fork: Steel welded with black coating, steel brake, sealed double ball swivel head, grease nipple, plate fitting

Wheel: Hard nylon (PA6) with windmill profile, precision ball bearing, double wheel mounting


Advantages: For very heavy transport on flat floors. Low rolling resistance. Relatively insensitive to notches and very wear-resistant.

Applications: Heavy material handling, heavy containers, automotive factories, petrochemical plants, heavy transport, ports, armed forces, aviation, bridge cranes, chemical plants.

Suitable substrate : Hard and flat such as tiles, cement and coatings.
Suitable environment : Dry and not permanently damp. With alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 150mm, nylon (PA6), 1000KG

heavy duty swivel castor made of welded steel fork, plate mounting, hard nylon (PA6), precision ball bearing, Wheel Ø 150mm, 1000KG

3-4 Weeks

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: 3-4 Weeks

Product information

  • SKU 127486155
  • EAN 8718116215578

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 150
  • Wheelwitdh (mm) 2x50
  • Load capacity (kg) 1000
  • Overall height (mm) 210
  • Size of top plate (mm) 200x200
  • Topplate hole centres (mm) 160x160
  • Plate hole (mm) 17
  • Offset (mm) 72
  • Swivel Radius 147
  • Bearing type Ball bearing
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Welded steel construction
  • Series 27.48
