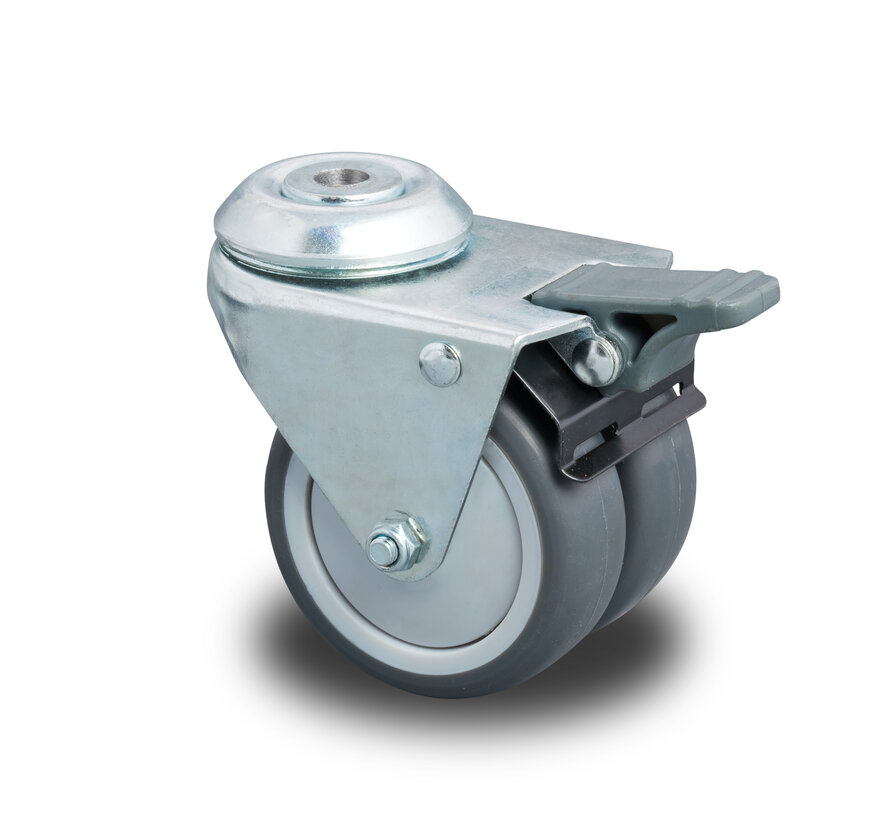

Institutional Swivel caster with brake from pressed steel, bolt hole, Polypropylene Wheel, plain bearing, Wheel-Ø 50mm, 80KG

Product description

Institutional Swivel caster with brake from pressed steel, bolt hole, Polypropylene Wheel, plain bearing, Wheel-Ø 50mm, 80KG

Institutional thermoplastic (TPR) non-marking Swivel caster with brake

Housing: pressed steel, Total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
Wheel: Polypropylene Wheel, with Wheel centre from Polypropylene, plain bearing, double castors

Features: Versatile wheel for use on a flat surface. Dual wheels for a high load capacity at a low overall height

Applications: Excellent for static applications under load, such as heavier cabinets, freezers, etc.

Suitable surface: Smooth surface without any obstacles.
Suitable environment: Dry and not Permanently humid. For mild acids and alkalis.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Institutional Swivel caster with brake from pressed steel, bolt hole, Polypropylene Wheel, plain bearing, Wheel-Ø 50mm, 80KG

Institutional Swivel caster with brake from pressed steel, bolt hole, Polypropylene Wheel, plain bearing, Wheel-Ø 50mm, 80KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 340884503
  • EAN 8718116133643

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 50
  • Wheel witdh (mm) 2x19
  • Load capacity (kg) 80
  • Overall height (mm) 73
  • Swivel offset (mm) 30
  • Swivel Radius 55
  • Bearing type precision ball bearing
  • Hardness of tread 90° Shore A
  • Tread description Grey thermo (TPR) rubber
  • Castor wheel type Swivel castor with brake
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Bolt hole diameter 10
  • Series 34.88
  • Tread gray thermoplastic rubber, non-marking
