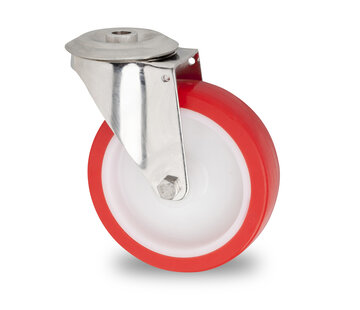

swivel castor with brake, Ø 80 mm, casted polyurethane, 140KG

Product description

Stainless steel transport castor with brake made of stainless steel (pressed), bolt hole mounting, sprayed polyurethane, stainless steel roller bearing, Wheel Ø 80mm, 140KG

Wheel: injection-moulded polyurethane, with polyamide wheel core, stainless steel roller bearing,

Advantages: For medium-heavy transport on flat floors. Low rolling resistance. Relatively insensitive to notches and very wear-resistant. Non-stretching tyre, low-noise running, hygienic.

Applications: Food industry, pharmaceutical industry, laundry containers, serving trolleys, bakeries, meat processors, butchers, slaughterhouses, fruit shops, greengrocers, hotels, restaurants, catering, café, fish processing plants, fish trade, supermarkets.

Suitable surfaces: Hard and flat such as tiles, cement and coatings.
Suitable environment : For alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 80 mm, casted polyurethane, 140KG

Stainless steel transport castor with brake made of stainless steel (pressed), bolt hole mounting, sprayed polyurethane, stainless steel roller bearing, Wheel Ø 80mm, 140KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 190633803
  • EAN 8718116111177

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 80
  • Load capacity (kg) 140
  • Overall height (mm) 105
  • Swivel offset (mm) 36
  • Swivel Radius 76
  • Bearing type Roller bearing
  • Hardness of tread 95° Shore A
  • Tread description Wheel with injected polyurethane (PU) tyre
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor with brake
  • Fitting Bolt hole fixing
  • Fork material Stainless steel AISI 304
  • Fork 190.008
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Bolt hole diameter 12
  • Series 90.63
  • Tread Polyurethane
