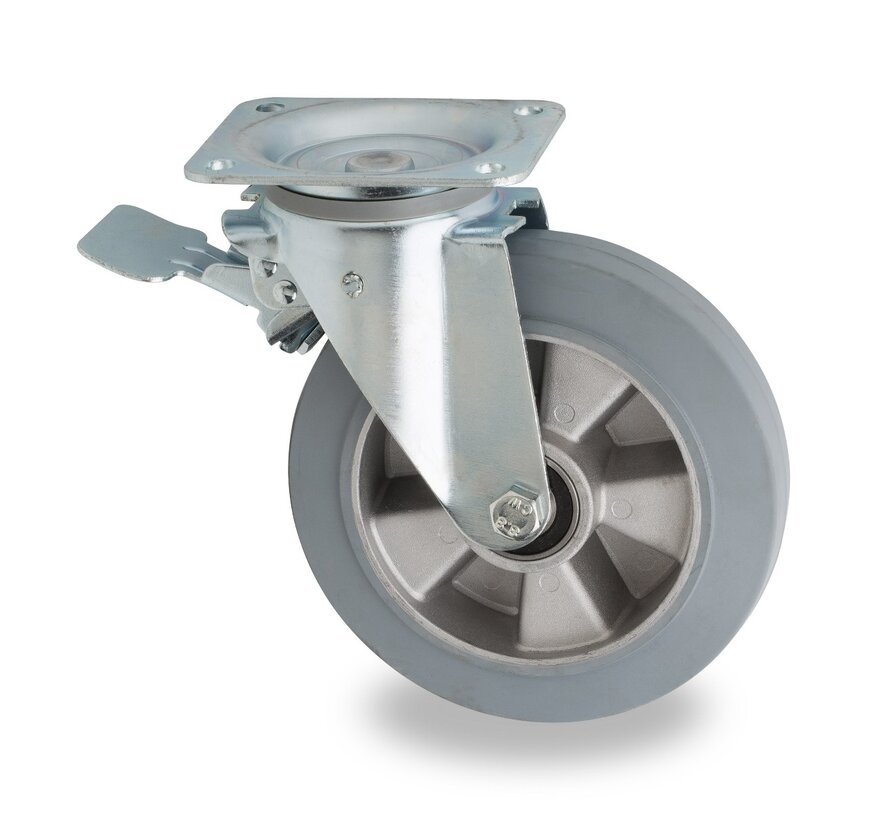

swivel castor with brake, for waste bin, Ø 200mm, grey elasticated rubber tyre, 400KG

Product description

transport waste container swivel wheel with brake made of pressed sheet steel, plate mounting, elastic gray rubber tire, precision ball bearings, Wheel Ø 200mm, 400KG

Wheel: grey elastic rubber tyre, with wheel core made of aluminium, precision ball bearing,

Advantages: Versatile use with excellent rolling properties. Low-noise and vibration damping.

Applications: Industrial trolleys, material handling in factories, waste containers, transport containers, metal and chemical plants, medium-load roll containers, tool trolleys, warehouse trolleys.

Suitable surfaces: Almost any surface. Uneven surfaces such as clinkers, damaged floors and near obstacles such as thresholds.
Suitable environment : Dry and not permanently damp. With alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, for waste bin, Ø 200mm, grey elasticated rubber tyre, 400KG

transport waste container swivel wheel with brake made of pressed sheet steel, plate mounting, elastic gray rubber tire, precision ball bearings, Wheel Ø 200mm, 400KG

Delivery within 4 business days possible

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: Delivery within 4 business days possible

Product information

  • SKU 151216208
  • EAN 8718116107026

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 200
  • Wheel witdh (mm) 50
  • Load capacity (kg) 400
  • Overall height (mm) 238
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 59
  • Swivel Radius 159
  • Bearing type Ball bearing
  • Tread description Wheel with grey elastic rubber tyre (vulcanised). Does not leave streaks on your floor.
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Series 151.21
  • Tread Solid rubber
