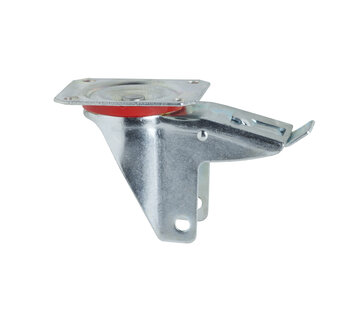

swivel fork Ø200mm plate fitting 300KG

Product description
Quality & Service since 1946

fork

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel fork Ø200mm plate fitting 300KG

fork

Quantity

We want to make your work-life easier Tooltip Just tell us what you need
Fast delivery
3D CAD Models
Engineering service

Request special product

Download PDF

Chemical resistance

Product information

SKU 146008200
EAN 8718116101208

Specifications

Wheel diameter (mm) 200
Load capacity (kg) 300
Size of top plate (mm) 135x110
Topplate hole centres (mm) 105x80
Mounting hole diameter (mm) 11
Swivel offset (mm) 60
Fitting Plate mounting
Fork material Galvanised
Thickness top plate 4
Fork type Swivel fork
Fork Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
Thickness fork legs 3
Fork width (inner) 63
Fork height 135
Axle bore-Ø in fork legs 12
Series 46008
