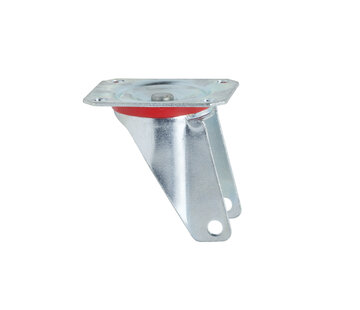

swivel fork with brake Ø100mm plate fitting 200KG
Product description
Quality & Service since 1946
Quality & Service since 1946
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.
Product information
- SKU 146008103
- EAN 8718116101130
Specifications
- Wheel diameter (mm) 100
- Load capacity (kg) 200
- Size of top plate (mm) 105x80
- Topplate hole centres (mm) 80x60
- Mounting hole diameter (mm) 9
- Swivel offset (mm) 37
- Fitting Plate mounting
- Fork material Galvanised
- Thickness top plate 3
- Fork type Swivel fork and brake
- Fork Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
- Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
- Thickness fork legs 2
- Fork width (inner) 42
- Fork height 78
- Axle bore-Ø in fork legs 10
- Series 46008
