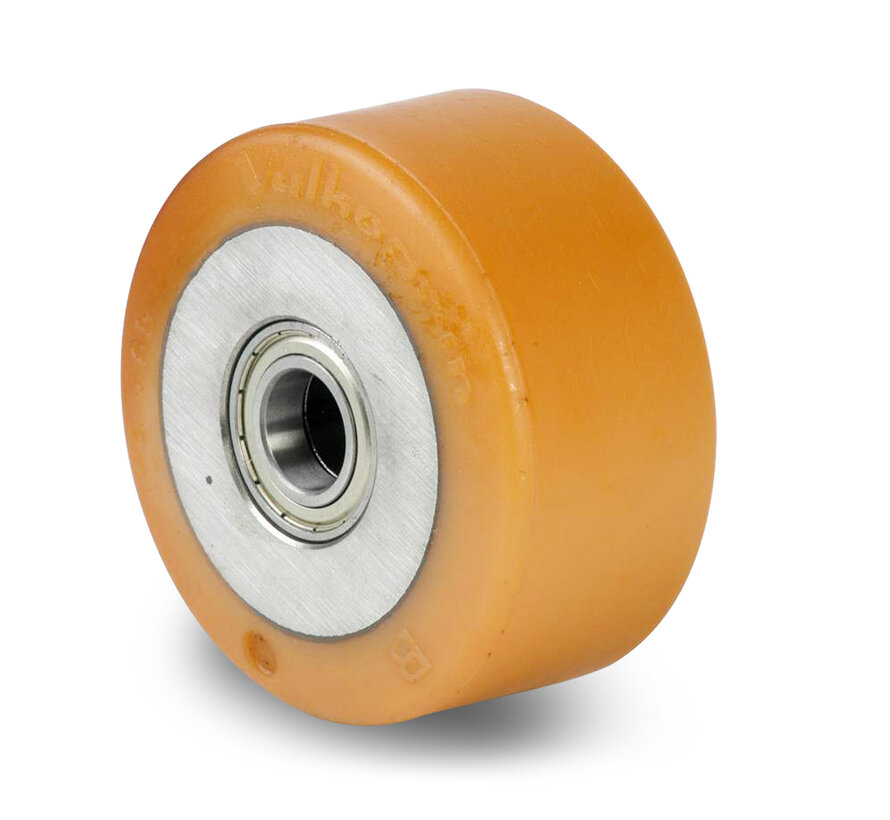

Wheel: Vulkollan® Bayer tread cast iron core with precision ball bearing
Vulkollan®: For intensive use where wear resistance and bonding of the tyre to the core are essential!
Wheel diameter : 100mm
Tyre width : 65mm
Hub length: 65mm
Hub diameter Ø: 76mm
Axle hole Ø: 30mm
Load capacity (static): 575KG
Temperature: -40 to +85°C
Tread: Vulkollan® 92° Shore A
Wheel core: cast iron core with precision ball bearing
Advantages: Very solid wheel with cast Bayer Vulkollan® tyre. Minimal rolling resistance and excellent rolling properties. Does not leave any marks. Shockproof and noise-reducing.
Applications: Heavy trolleys, machine construction, driving drums, waste water treatment.
Suitable substrate : Hard and flat such as tiles, cement and coatings.
Suitable environment : Resistant to oils, greases and various chemicals.
![](https://cdn.webshopapp.com/shops/352868/themes/183049/v/2130798/assets/logo.png?20231211163120)
![](https://cdn.webshopapp.com/shops/352868/themes/183049/v/2130798/assets/logo.png?20231211163120)
Vulkollan® Bayer tread cast iron core, Ø 100x65mm, 575KG
Product description
Quality & Service since 1946
Quality & Service since 1946
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.
Product information
- SKU 100456102G
- EAN 8718116082323
Specifications
- Non marking tread Yes
- Wheel diameter (mm) 100
- Load capacity (kg) 575
- Bearing type Ball bearing
- Hardness of tread 92° Shore A
- Type of wheel Wheel
- Temperature -40 / +85
- Hub length (mm) 65
- Axle hole-Ø (mm) 30
- Series 100.45M
- Tyre / rim connection vulcanised
- Outer bearing distance 63.0
- Hub diameter Ø 76.0
- Tread Vulkollan
