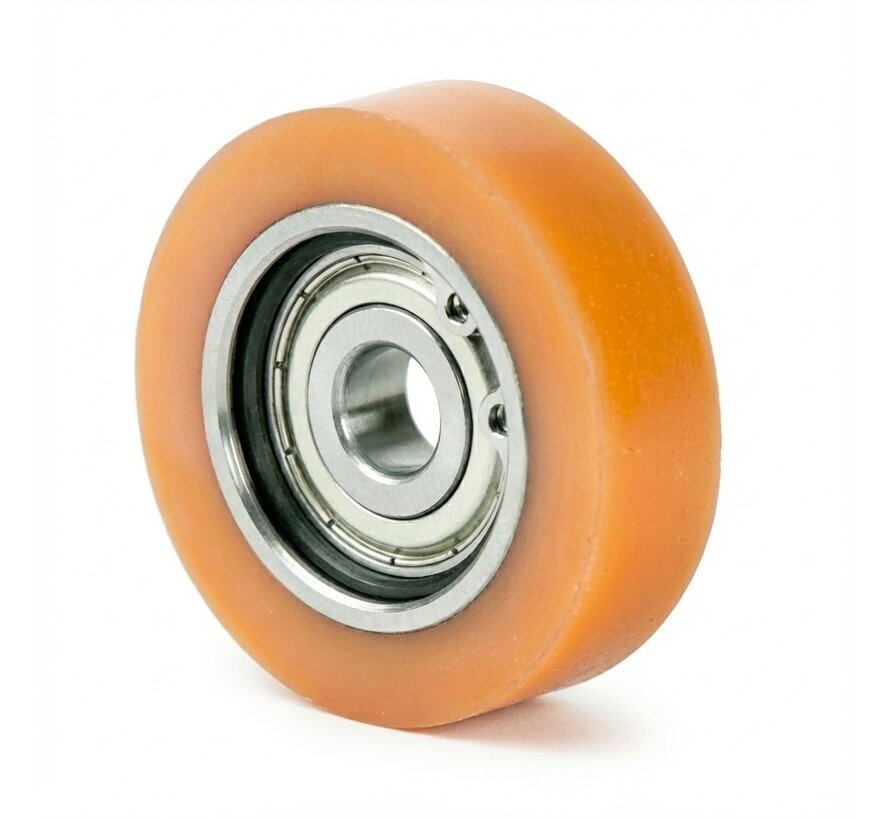

Vulkollan® guiding roller Vulkollan® Covestro tread steel core, precision ball bearing, Wheel-Ø 50mm, 65KG

Product description

Vulkollan® guiding roller Vulkollan® Covestro tread steel core, precision ball bearing, Wheel-Ø 50mm, 65KG

Wheel: Vulkollan® guiding roller Vulkollan® Covestro tread steel core with precision ball bearing

Vulkollan®: For intensive use where abrasion resistance and binding of the band at the core are essential!

Wheel diameter : 50mm
Width of tread: 18mm
Axle hole-Ø: 17mm
Load capacity (static): 95 KG
Temperature: -40 tot +85mm
tread: Vulkollan® 92° Shore A
wheel centre: steel core with precision ball bearing

Features: Minimal rolling restistance and excelent rolling properties, Does not mark the floor / contact surface, High mechanical restistance and extremely wear restistant.

Applications: Conveyor- and transport systems, elevator construction, sorting systems, material handling.

Suitable surface:
Suitable environment: Resistant to oils, greases and various chemicals

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Wielen.nl is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Vulkollan® guiding roller Vulkollan® Covestro tread steel core, precision ball bearing, Wheel-Ø 50mm, 65KG

Vulkollan® guiding roller Vulkollan® Covestro tread steel core, precision ball bearing, Wheel-Ø 50mm, 65KG

2 weeks delivery time. Do you need it quicker? Let us know!

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: 2 weeks delivery time. Do you need it quicker? Let us know!

Product information

  • SKU 100458052D
  • EAN 8718116084556

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 50
  • Wheel witdh (mm) 18
  • Load capacity (kg) 95
  • Bearing type precision ball bearing
  • Hardness of tread 92° Shore A
  • Type of wheel Guide rollers
  • Temperature -40 / +85°C
  • Hub length (mm) 1139
  • Axle hole-Ø (mm) 17
  • Series 100.45VL
  • Tread Vulkollan®
